    Evoqua Electrodeionization EDI Stack Modules

    Ionpure LX-Z Series IP-LXM04Z-5 Flow rates 0.22m³/h (1gpm) to 7.67 m³/h (33.8gpm) high purity deionized water CEDI - Ionpure LX-Z Industrial CEDI ModuleWith its enhanced chlorine resistance, the Ionpure LX-Z-5 module is specifically designed to meet a wide range of industrial deionized water applications and market needs, including power plant boiler feed water, pharmaceutical purified water, hydrocarbon and chemi

    Ionpure LX-Z Series IP-LXM04Z-5 Flow rates 0.22m³/h (1gpm) to 7.67 m³/h (33.8gpm) high purity deionized water CEDI

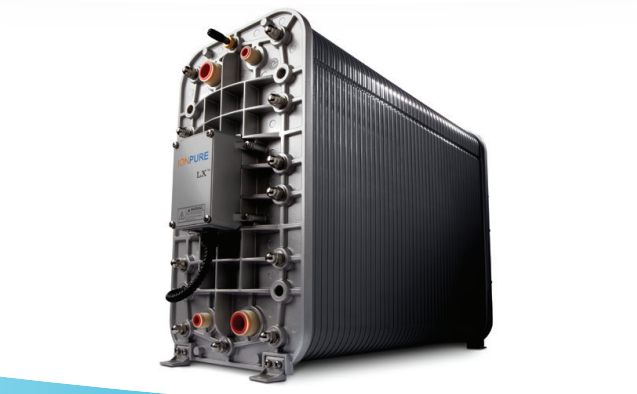

    Ionpure LX-Z Industrial CEDI Module

    With its enhanced chlorine resistance, the Ionpure LX-Z-5 module is specifically designed to meet a wide range of industrial deionized water applications and market needs, including power plant boiler feed water, pharmaceutical purified water, hydrocarbon and chemical process water (HPI/CPI) and other high purity needs.

    IONPURE CEDI modules provide a steady flow of high purity water without the need for downtime or chemical regeneration as with traditional deionization methods, greatly optimizing production efficiency and cost-effectiveness.

    LX-Z Series Features

    • Significantly lower operating costs compared to traditional ion exchange methods

    • Produces mixed bed quality deionized water without the use of chemicals

    • Achieve continuous production rather than batch production to ensure quality consistency

    • Double O-ring seal design ensures leak-free operation

    • No acid/alkali, neutralization systems or replaceable DI water tanks required

    • Resin-filled concentrate ensures optimal performance and ease of operation

    • Continuous operation without interruption

    • Withstands feed water up to 0.05 ppm (total chlorine)

    • Wide range of flow rates per module, from 0.22 m³/h (1 gpm) to 7.67 m³/h (33.8 gpm)

    • Water-contact materials comply with NSF® 14 and NSF® 61 standards

    By using IONPURE's LX-Z series modules, users can achieve more economical, efficient and environmentally friendly deionized water treatment for various industrial applications.



    QUALITY ASSURANCE STANDARDS

    CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.


    About the operating environment of the IONPURE LX-Z module:

    The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.


    TYPICAL MODULE PERFORMANCE

    Operating Parameters


    Recovery

    90–95%

    DC Voltage

    0–400

    DC Amperage

    1.0–6.0

    Product Water Quality


    Product Resistivity

    Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*†

    Silica (SiO2) Removal

    90–99%, depending on feed conditions

    * Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.

    *Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.


    FEED WATER SPECIFICATIONS

    Feed Water Conductivity Equivalent, including CO2 and Silica

    < 40 μS/cm

    Feed Water Source

    RO permeate

    Temperature

    5–45˚C (41–113˚F)

    Inlet Pressure

    1.4–6.9 bar (20–100 psig)

    Maximum Total Chlorine (as Cl2)

    < 0.05 ppm

    Iron (as Fe)

    < 0.01 ppm

    Manganese (as Mn)

    < 0.01 ppm

    Sulfide (S2-)

    < 0.01 ppm

    pH

    4–11

    Total Hardness (as CaCO3)

    < 1.0 ppm

    Dissolved Organics (TOC as C)

    < 0.5 ppm

    Silica (SiO2)

    < 1.0 ppm


    PHYSICAL SPECIFICATIONS

    Item Number

    L +/- 6.4 mm (0.25")

    C +/- 3.2 mm (0.13")

    LXM04Z

    257 mm (10.12")

    146.8 mm (5.78")

    LXM10Z

    347.7 mm (13.69")

    235.7 mm (9.28")

    LXM18Z

    488.2 mm (19.22")

    353.8 mm (13.93")

    LXM24Z

    601.7 mm (23.69")

    442.7 mm (17.43")

    LXM30Z

    696.5 mm (27.42")

    531.3 mm (20.92")

    LXM45Z

    907.3 mm (35.72")

    747.7 mm (29.44")

    LX8000Z

    1062 mm (41.81")

    888 mm (34.95")



    LX-Z FLOW RANGE AND WEIGHTS

    Ordering Part #

    Model Number

    Minimum Flow Rate m3/hr (gpm)

    Design Flow Rate m3/hr (gpm)

    Shipping Weight kg (lbs)**

    Operating Weight kg (lbs)

    W3T17286

    IP-LXM04Z-5

    0.22 (1.0)

    0.44-0.67 (2.0-3.0)

    59 (130)

    31 (69)

    W3T17291

    IP-LXM10Z-5

    0.57 (2.5)

    1.1-1.65 (5.0-7.5)

    78 (171)

    51 (113)

    W3T17297

    IP-LXM18Z-5

    1.02 (4.5)

    2.0-3.1 (9.0-13.5)

    99 (217)

    74 (163)

    W3T17303

    IP-LXM24Z-5

    1.36 (6.0)

    2.8-4.2 (12.5-18.8)

    115 (254)

    92 (103)

    W3T17312

    IP-LXM30Z-5

    1.70 (7.5)

    3.3-5.11 (15.0-22.5)

    132 (291)

    110 (243)

    W3T17314

    IP-LXM45Z-5

    2.57 (11.3)

    5.1-7.67 (22.5-33.8)

    205 (451)

    157 (345)

    W3T584543

    IP-LX8000Z-5

    3.13 (13.75)

    7.5 - 10 (33 - 44)

    225 (496)

    190 (419)

    ** Includes shipping crate



    E-Cell EDI Technology Performance Examples


    E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.


    For application cases, please click:https://www.fgwater.com/Industries/
