Manufacturing Plant For Special Processing Equipment - UV, Ozone Disinfection Etc. Equipment.
The plant manufacturing capabilities mainly include purified water,soften water, develop and expand pure water,sewage treatment,UV sterilizer system,full-automatic soften water system,electronic cleaner system,filter, Hydrocyclone sand-remover,level pressure moisturizing, Diversity in the water etc.
The plant was ISO 9001-2008 international quality management system.and constantly improve work quality, product quality, quality of service. The major technologies and the crafts achieve the international advanced level. The price is quite fair, suiting the different domain different water quality the enterprise water treatment necessary demand. The company will insisit to “with the world's leading advantage, to create international brand”leading technology; to the international top brands
Only Modern Technologies And Highest Quality For Our Customers!

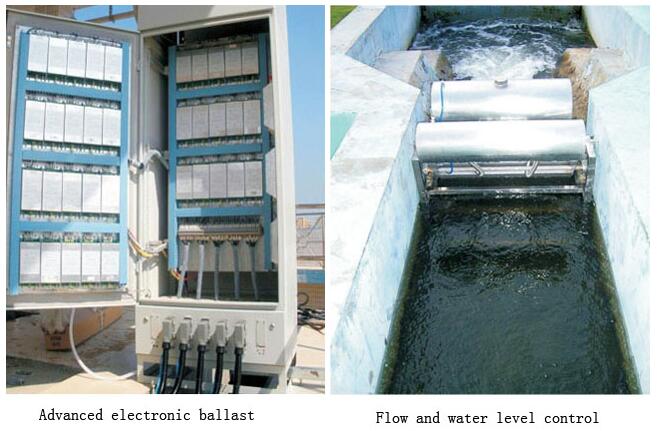

ADVANCED ELECTRONIC BALLAST
Z-E-D GmbH electronic ballast from Germany with a power factor of 95%. Electronic ballast meets regulation requirements for electromagnetic interference and radio frequency interference (EMI/RFI). Has emergency shutdown function in case of power surges, overheating or other situations. Short start-up time, low noise level, stable output current. Using high-quality electronic ballast can improve UV lamp service life by at least 12%.

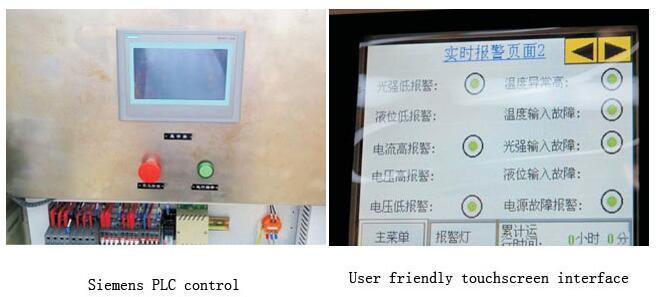

INTELLIGENT, USER-FRIENDLY CONTROL SYSTEM
Continuous online system control and monitoring. Information is available on-site, through the smart touch screen display or wirelessly, through the GSM/3G module. For each individual module data include: current status, UV light intensity, and running time in hours. Otherimportant parameters, such as flowrate, water quality
AUTOMATIC CLEANING SYSTEM
Organic fouling of glass protection sleeves can cause lower UV intensity and therefore, lower UV dosage, especially in waste water treatment field.
Automatic wiping system regularly removes biological deposition from the surface of the cleaning glass sleeve, improving the disinfection efficiency and keeping the transmittance close to the initial level of 92%.
Cleaning system consist of a stainless steel rack, control mechanism and flexible teflon rings.
Using flexible rings helps to avoid any damage to glass sleeves and to adjust to small deviations in tube diameter.

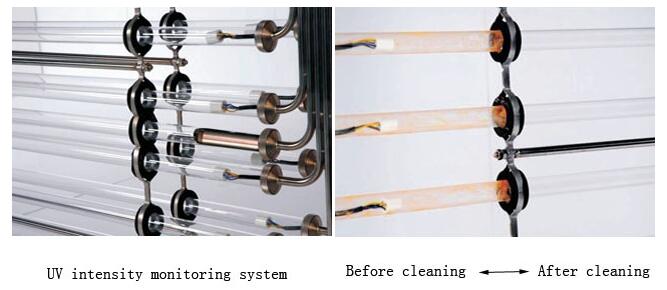

UV LIGHT INTENSITY MONITORING SYSTEM
Online intensity sensor connected to the PLC control block provides continuous monitoring of UV light intensity. Emergency alarm and replacement signals notify user when the intensity drops below the preset level.
PATENTED WATER FLOW CONTROL
Top location of inlet and outlet, hydraulic modeling and design, and high-quality stainless steel helps to minimize the headlosses, avoid short circuiting , and optimize water flowrate through the UV chamber.
