Water Media Filters Commercial & Industrial
Commercial & Industrial Water Media Filters are most efficient filtration method during operations that require the removal of large amounts of suspended solids in water. As regards to your water quality we can use sand, carbon and some other special media. So, our media filters have are most po
Commercial & Industrial Water Media Filters are most efficient filtration method during operations that require the removal of large amounts of suspended solids in water. As regards to your water quality we can use sand, carbon and some other special media. So, our media filters have are most powerful and major players in maintaining high water quality throughout the all industries through the filtration of harmful substances in rivers, lakes, streams, wells, etc.
FENIGAL multimedia water filter systems are ideal for use where tough water quality standards are necessary or where high levels of suspended solids are exist accordingly. Hence, these applications can include re-use applications, water pre-treatment applications for reverse osmosis and deionization systems or as a pre-treatment system prior to a disposable bag or cartridge filters.

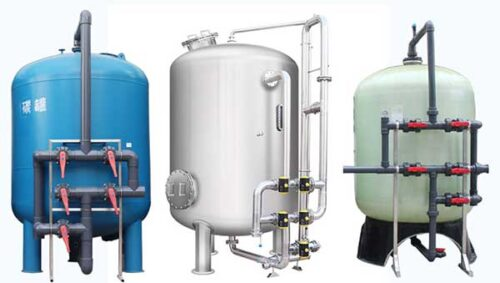

Commercial Water Multi-Media Filters
Capacity Range: 0.1m3 to 50m3/Hour
Material:Stainless Steel 304, 316, Fiberglass Reinforced Plastic FRP
Operating Pressure: Up to 150psi
Control Valve: Manual or Automatic
Industrial Water Multi-Media Filters
Capacity Range: 2m3 to 185m3/Hour
Material:Stainless Steel 304, 316, Carbon Steel, Fiberglass Reinforced Plastic FRP
Operating Pressure: Up to 150psi
Control Valve: Manual or Automatic
What is the Advantages of Mechanical Filtration Tanks?
The multi-media water filter systems is important process in water treatment solution applications. Because the bed can hold more turbidity. Turbidity is trapped and held throughout the entire bed depth, rather than the top one or two inches.
Multi-media filtration is much better suitable for use in a closed pressure tank since cracking of the bed, and subsequent breakthrough of turbidity is virtually eliminated and the need for visual inspection is unnecessary.
Another important advantage is that water media filters can clarify water at a much higher flow rate than a single-media sand filter.
FENIGAL multi-media water clarify water by removing impurities, for example sediment, turbidity, iron, unpleasant tastes and odors, suspended particles, and unwanted color, all of which are commonly in surface water. Commercial and Industrial water media filters are in a variety of service conditions including, but no limitation to: industrial, municipal, and institutional applications accordingly.
l Remove various floating particles
l Remove deferrisation, demagnetization and ammonia
l Reduction of protozoa and bacteria accordingly
l Easy to operate and low maintenance requirements
l Effective removal and long lifetime consequently
What is the media in water multi-media filtration vessel?
Multimedia water filter systems use three media layers for multimedia filtration. So, these layers are activated carbon or anthracite, sand and gravel layers. Their usefulness resides in the distinct differences in density between these layers of media. Activated Carbon or Anthracite has the least density among the three, followed by sand, and gravel.
How long can I use the media pressure vessel?
You can use at least 15 years FENIGAL Water Media Filters System, but periodically you have to change media (sand, carbon).
