    Evoqua Electrodeionization EDI Stack Modules

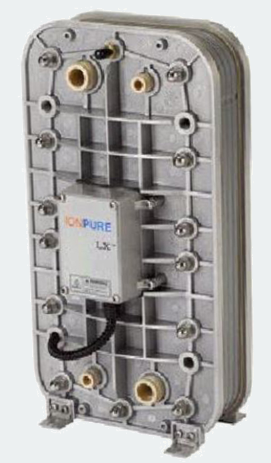

    IonPure IP-LXM04Z Industrial Electrodeionization Module: Minimum Resistivity 17 MΩ-cm CEDI Module - IonPure® IP-LXM04Z-1 Industrial Electrodeionization Module

    IonPure IP-LXM04Z Industrial Electrodeionization Module: Minimum Resistivity 17 MΩ-cm CEDI Module

    VNX modules are designed to reduce the cost of building high-flow CEDI systems and make the choice of clean, environmentally friendly technology an ideal alternative to chemically regenerated mixed-bed ion exchange systems. High-flow CEDI modules simplify the assembly process of piping and systems by reducing the number of modules required. In addition, the VNX modules have a built-in support system that enables intelligent bracket design and minimal bracket cost, providing users with a more convenient and economical solution.

    IONPURE LX modules are designed for industrial applications and provide excellent performance and reliability for power, high-purity water/ultrapure water, general electronics, food and beverage, and laboratory applications. These modules require no regeneration downtime and continuously provide high-quality deionized water, ensuring stable operation in the industrial field. IONPURE LX modules have become the first choice of water treatment technology in the industrial field for their excellent performance and stability.

    IONPURE MX series CEDI modules perform well in laboratory and low-flow process applications. These modules are an ideal complement to light industrial, commercial and laboratory reverse osmosis (RO) systems and can be easily mounted on the wall or in a cabinet. MX modules provide users with high-performance and low-maintenance solutions to meet the needs of various application scenarios.

    product data

    Brand

    IonPure

    Replaced by

    IP-LXM4X-4

    Type

    CEDI

    Feed Water Conductivity µS/cm

    40

    Product Resistivity MΩ/cm

    16

    Total Hardness ppm

    1.0

    Inlet Pressure bar

    7

    Inlet Pressure psi

    100

    Max Temperature °C

    45

    Max Temperature °F

    113

    pH range

    4-11

    Flow m3/h

    0.5

    Flow rate gpm/ft2

    2.0

    Length in inch

    10.12

    Length in cm

    25.7

    Shipping Weight kg

    68

    Shipping Weight lbs

    150

    Application

    Industrial / Power

    See below for more parameters



    QUALITY ASSURANCE STANDARDS

    CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.


    IONPURE LX-Z module has the following significant advantages:

    * Wide flow range, single module flow rate from 0.22 cubic meters/hour (1 gallon/minute) to 10 cubic meters/hour (44 gallons/minute), meeting the needs of various application scenarios.

    * Significantly lower operating costs compared to traditional ion exchange methods.

    * No need to use chemicals to generate mixed-bed quality deionized water.

    * Achieve continuous production rather than batch processing to ensure stable and reliable water quality.

    * Adopt double O-ring sealing design to ensure leak-free operation.

    * No acid, base, neutralization system or replaceable deionized water tank required.

    * Filled with premium resin for optimal performance and ease of operation.

    * Support continuous operation to ensure uninterrupted water supply.

    * Can handle incoming water up to 0.05ppm (total chloride ion content).

    * The material of wet parts complies with NSF® 14 and NSF® 61 standards, which is safe and reliable.


    About the operating environment of the IONPURE LX-Z module:

    The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.


    TYPICAL MODULE PERFORMANCE

    Operating Parameters


    Recovery

    90–95%

    DC Voltage

    0–400

    DC Amperage

    1.0–6.0

    Product Water Quality


    Product Resistivity

    Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*†

    Silica (SiO2) Removal

    90–99%, depending on feed conditions

    * Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.

    *Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.

    FEED WATER SPECIFICATIONS

    Feed Water Conductivity Equivalent, including CO2 and Silica

    < 40 μS/cm

    Feed Water Source

    RO permeate

    Temperature

    5–45˚C (41–113˚F)

    Inlet Pressure

    1.4–6.9 bar (20–100 psig)

    Maximum Total Chlorine (as Cl2)

    < 0.05 ppm

    Iron (as Fe)

    < 0.01 ppm

    Manganese (as Mn)

    < 0.01 ppm

    Sulfide (S2-)

    < 0.01 ppm

    pH

    4–11

    Total Hardness (as CaCO3)

    < 1.0 ppm

    Dissolved Organics (TOC as C)

    < 0.5 ppm

    Silica (SiO2)

    < 1.0 ppm



    E-Cell EDI Technology Performance Examples


    E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.


    For application cases, please click:https://www.fgwater.com/Industries/
