    Evoqua Electrodeionization EDI Stack Modules

    Evoqua IP-LXM04Z-1 Industrial Electrodeionization Module - Evoqua IP-LXM04Z-1 Industrial Electrodeionization Module

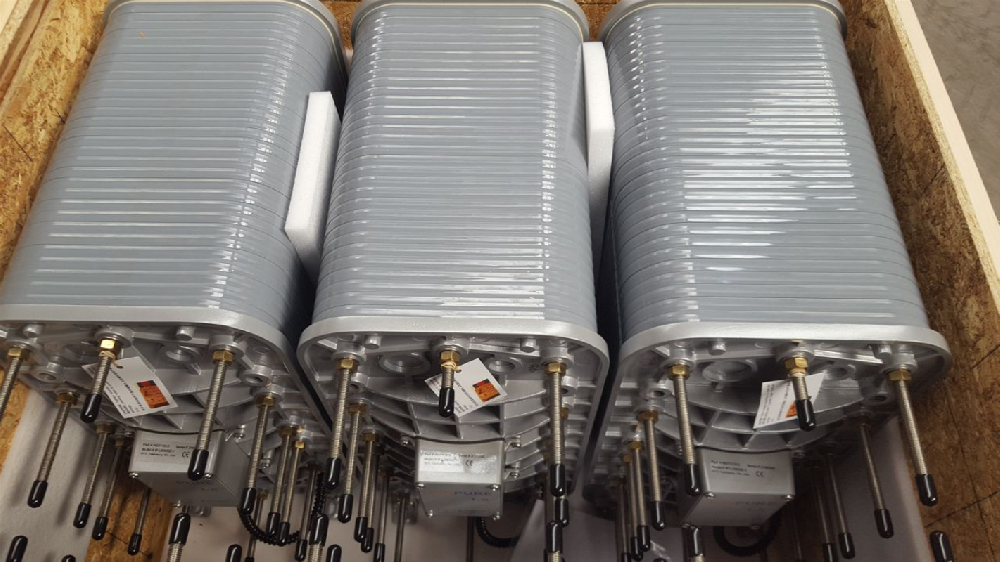

    Evoqua IP-LXM04Z-1 Industrial Electrodeionization Module

    The VNX module was meticulously developed to slash the expenses associated with establishing high-flow-rate CEDI systems, while facilitating the selection of a clean and environmentally-friendly technology over chemically regenerated mixed bed ion exchange systems. Incorporating VNX modules, which feature higher flow rates, simplifies piping and system assembly by significantly reducing the number of modules required.

    The built-in support system of VNX modules not only enhances their structural integrity but also enables intelligent skid design, thereby minimizing skid costs.

    Tailored for industrial use, the Ionpure LX modules guarantee utmost reliability and exceptional performance across diverse applications, including power generation, HPI/CPI, general electronics, food and beverage production, and laboratory work. These modules operate seamlessly without any regeneration downtime.

    For laboratory use and lower flow process applications, the Ionpure MX Series CEDI modules offer superior performance. These MX modules are a perfect accompaniment to wall-mounted or cabinet-housed light industrial, commercial, and laboratory RO systems.


    product data

    Brand

    Evoqua

    Replaced by

    IP-LXM4X-4

    Type

    CEDI

    Feed Water Conductivity µS/cm

    40

    Product Resistivity MΩ/cm

    16

    Total Hardness ppm

    1.0

    Inlet Pressure bar

    7

    Inlet Pressure psi

    100

    Max Temperature °C

    45

    Max Temperature °F

    113

    pH range

    4-11

    Flow m3/h

    0.5

    Flow rate gpm/ft2

    2.0

    Length in inch

    10.12

    Length in cm

    25.7

    Shipping Weight kg

    68

    Shipping Weight lbs

    150

    Application

    Industrial / Power

    See below for more parameters



    QUALITY ASSURANCE STANDARDS

    CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.


    IONPURE LX-Z module has the following significant advantages:

    * Wide flow range, single module flow rate from 0.22 cubic meters/hour (1 gallon/minute) to 10 cubic meters/hour (44 gallons/minute), meeting the needs of various application scenarios.

    * Significantly lower operating costs compared to traditional ion exchange methods.

    * No need to use chemicals to generate mixed-bed quality deionized water.

    * Achieve continuous production rather than batch processing to ensure stable and reliable water quality.

    * Adopt double O-ring sealing design to ensure leak-free operation.

    * No acid, base, neutralization system or replaceable deionized water tank required.

    * Filled with premium resin for optimal performance and ease of operation.

    * Support continuous operation to ensure uninterrupted water supply.

    * Can handle incoming water up to 0.05ppm (total chloride ion content).

    * The material of wet parts complies with NSF® 14 and NSF® 61 standards, which is safe and reliable.


    About the operating environment of the IONPURE LX-Z module:

    The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.


    TYPICAL MODULE PERFORMANCE

    Operating Parameters


    Recovery

    90–95%

    DC Voltage

    0–400

    DC Amperage

    1.0–6.0

    Product Water Quality


    Product Resistivity

    Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*†

    Silica (SiO2) Removal

    90–99%, depending on feed conditions

    * Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.

    *Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.

    FEED WATER SPECIFICATIONS

    Feed Water Conductivity Equivalent, including CO2 and Silica

    < 40 μS/cm

    Feed Water Source

    RO permeate

    Temperature

    5–45˚C (41–113˚F)

    Inlet Pressure

    1.4–6.9 bar (20–100 psig)

    Maximum Total Chlorine (as Cl2)

    < 0.05 ppm

    Iron (as Fe)

    < 0.01 ppm

    Manganese (as Mn)

    < 0.01 ppm

    Sulfide (S2-)

    < 0.01 ppm

    pH

    4–11

    Total Hardness (as CaCO3)

    < 1.0 ppm

    Dissolved Organics (TOC as C)

    < 0.5 ppm

    Silica (SiO2)

    < 1.0 ppm



    E-Cell EDI Technology Performance Examples


    E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.


    For application cases, please click:https://www.fgwater.com/Industries/
