EVOQUA's Innovative EDI Device - Ionpure LXM24Z-5
The ionpure EDI device LXM24Z is an advanced electrodeionization (EDI) module, meticulously designed to supply ultrapure water for both industrial and laboratory applications. This product is part of Evoqua's IonPure line, showcasing advanced technology and remarkable high reliability.
The ionpure EDI module LXM24Z employs a combined procedure of ion exchange and electrophoresis to effectively eliminate dissolved ions from water, without the need for regenerative chemicals as in traditional approaches. This not only significantly reduces operating costs but is also environmentally friendly.
I. Technical specifications

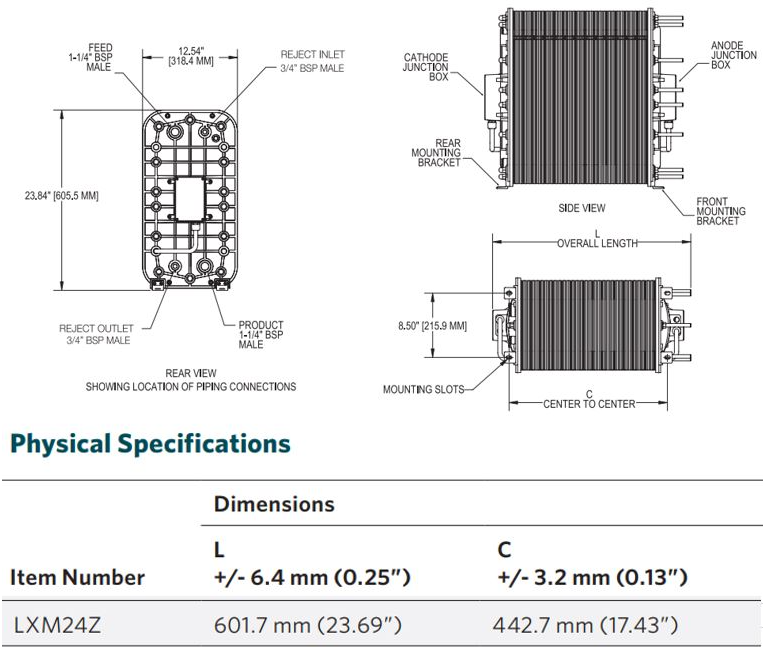

a. Physical parameters.
b. Input Water Quality Requirements Specification
Input water conductivity, Including CO2 and Silica | < 40 μS/cm |
Water supply | RO water |
Temperature | 41 – 113˚F (5 – 45˚C) |
Input pressure | 1.4-6.9 bar(20-100 psig) |
Maximum Total Chlorine (as Cl 2) | < 0.05 ppm |
Iron (Fe form) | < 0.01 ppm |
Manganese (as Mn) | < 0.01 ppm |
Sulfide (S2-) | < 0.01 ppm |
pH | 4 – 11 |
Total hardness (as CaCO 3) | < 1.0 ppm |
Dissolved organic matter (TOC as C) | < 0.5 ppm |
Silica (SiO 2) | < 1.0 ppm |
C.Processing Efficiency Level
Operating parameters |
Recall | 90 – 95% |
DC Voltage | 0 – 300 |
DC Ampere | 1.0 – 6.0 |
Finished water quality |
Outlet water resistivity | Minimum Flow > 17 Megohm-cm*+ Maximum Flow > 7 Megohm-cm*+ |
Silica (SiO 2) removal | 90 – 99%, Depending on input water |
II. Applications and the Corresponding Advantages
a. Application Scope of EDI Ionpure LXM24Z-5:
Applications for industrial plants include.
Boiler make-up water treatment in power plants.
Water utilized in hydrocarbon and chemical processing (HPI/CPI).
Pharmaceutical purified water.
b. Advantages
The ionpure LXM24Z-5 EDI module, featuring improved chlorine tolerance, is specially designed for a wide range of industrial deionized water.
The ionpure LXM24Z-5 EDI offers a continuous stream of high purity water without the downtime or chemical regeneration necessary for conventional deionization methods.
III. Features of EDI ionpure LXM24Z-5
The operating costs of the EDI ionpure LXM24Z are considerably lower than those of conventional ion exchange methods.
It produces mixed deionized water quality without the utilization of chemicals.
It operates continuously without interruption, generating stable output water quality.
The double O-ring seal guarantees leak-free operation.
There is no need to use acid/lye, and the neutralization system or DI tank can be replaced.
It has a wide flow range, from 0.22 m³/h (1 gpm) to 7.67 m³/h (33.8 gpm) per module.
It complies with NSF 14 and NSF 61 requirements.
The installation environment is indoors, away from direct sunlight, and with a maximum ambient temperature of 113°F (45°C).
QUALITY ASSURANCE STANDARDS
CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.
IONPURE LX-Z module has the following significant advantages:
* Wide flow range, single module flow rate from 0.22 cubic meters/hour (1 gallon/minute) to 10 cubic meters/hour (44 gallons/minute), meeting the needs of various application scenarios.
* Significantly lower operating costs compared to traditional ion exchange methods.
* No need to use chemicals to generate mixed-bed quality deionized water.
* Achieve continuous production rather than batch processing to ensure stable and reliable water quality.
* Adopt double O-ring sealing design to ensure leak-free operation.
* No acid, base, neutralization system or replaceable deionized water tank required.
* Filled with premium resin for optimal performance and ease of operation.
* Support continuous operation to ensure uninterrupted water supply.
* Can handle incoming water up to 0.05ppm (total chloride ion content).
* The material of wet parts complies with NSF® 14 and NSF® 61 standards, which is safe and reliable.
About the operating environment of the IONPURE LX-Z module:
The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.
TYPICAL MODULE PERFORMANCE |
Operating Parameters |
|
Recovery | 90–95% |
DC Voltage | 0–400 |
DC Amperage | 1.0–6.0 |
Product Water Quality |
|
Product Resistivity | Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
Silica (SiO2) Removal | 90–99%, depending on feed conditions |
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.
FEED WATER SPECIFICATIONS |
Feed Water Conductivity Equivalent, including CO2 and Silica | < 40 μS/cm |
Feed Water Source | RO permeate |
Temperature | 5–45˚C (41–113˚F) |
Inlet Pressure | 1.4–6.9 bar (20–100 psig) |
Maximum Total Chlorine (as Cl2) | < 0.05 ppm |
Iron (as Fe) | < 0.01 ppm |
Manganese (as Mn) | < 0.01 ppm |
Sulfide (S2-) | < 0.01 ppm |
pH | 4–11 |
Total Hardness (as CaCO3) | < 1.0 ppm |
Dissolved Organics (TOC as C) | < 0.5 ppm |
Silica (SiO2) | < 1.0 ppm |
E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click:https://www.fgwater.com/Industries/
