Ionpure IP-LXM10Z-5 CEDI Module, 1.1–1.65 m³/h Design Flow
1.Product OverviewThe Ionpure IP-LXM10Z-5 is an industrial continuous electrodeionization (CEDI) module that produces a continuous flow of deionized water from RO permeate.It is designed for boiler makeup water for power plants, water for hydrocarbon processing, and water for chemical pr
1. Product Overview

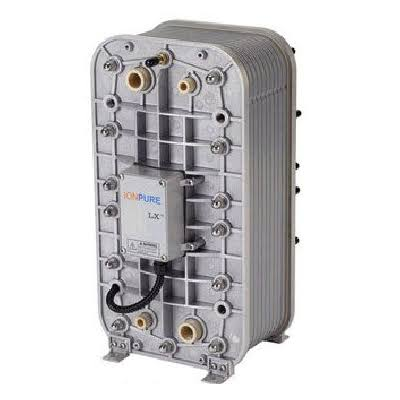

The Ionpure IP-LXM10Z-5 is an industrial continuous electrodeionization (CEDI) module that produces a continuous flow of deionized water from RO permeate.It is designed for boiler makeup water for power plants, water for hydrocarbon processing, and water for chemical processing. Its design flow rate is 1.1–1.65 m³/h (5.0–7.5 gpm).
2. PRODUCT SPECIFICATIONS
Item | Specification |
Brand | Ionpure |
Model | IP-LXM10Z-5 |
Product type | Continuous electrodeionization (CEDI) module |
Ordering part number | W3T17291 |
Dimension L | 347.7 mm (13.69 in); tolerance ±6.4 mm (±0.25 in) |
Dimension C | 235.7 mm (9.28 in); tolerance ±3.2 mm (±0.13 in) |

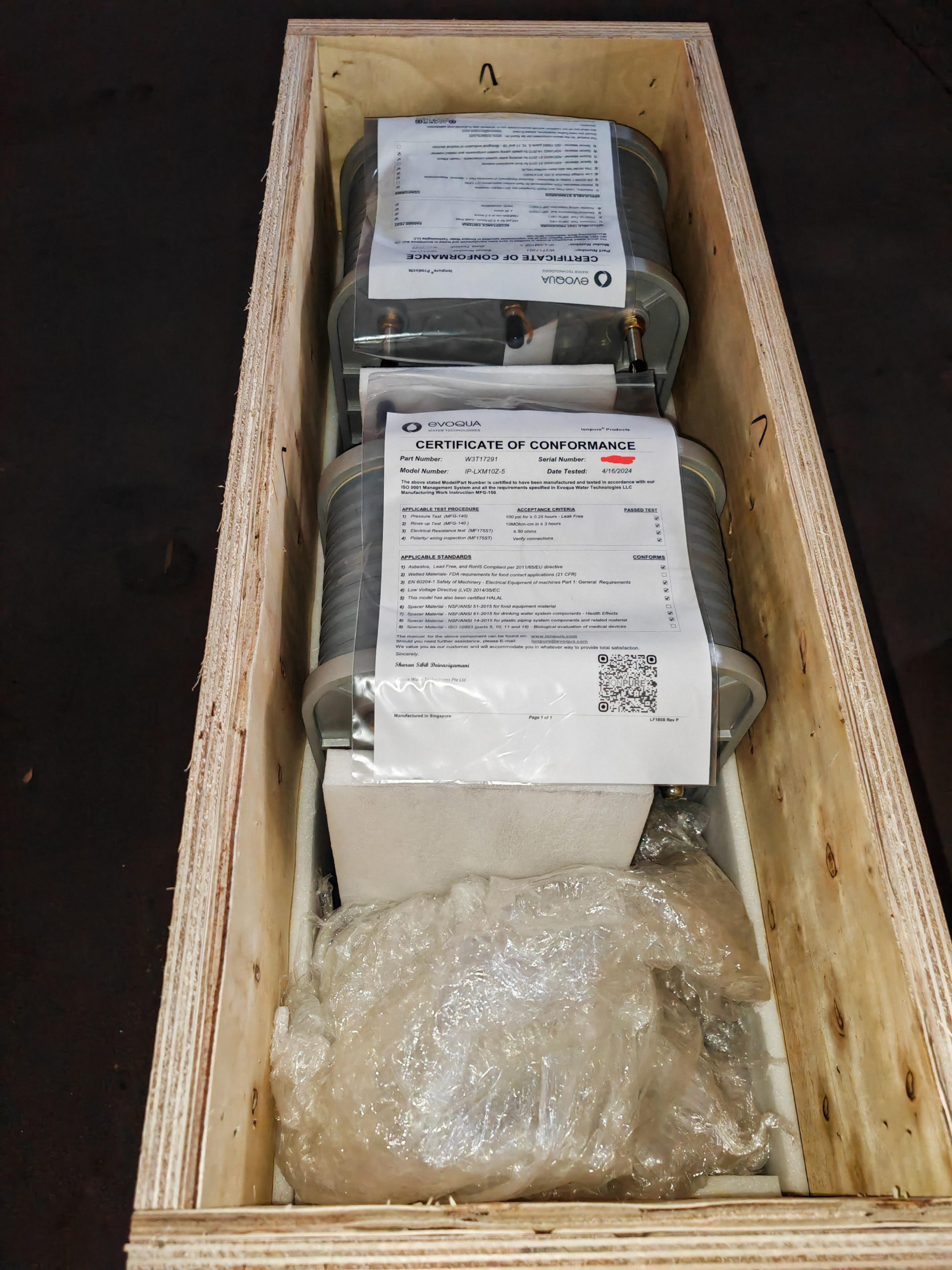

Shipping weight | 78 kg (171 lb), including shipping crate |
Operating weight | 51 kg (113 lb) |
3. OPERATING PARAMETERS
Parameter | Value / Range |
Minimum flow rate | 0.57 m³/h (2.5 gpm) |
Design flow rate | 1.1–1.65 m³/h (5.0–7.5 gpm) |
Feed water source | RO permeate |
Feed water conductivity equivalent, including CO₂ and silica | < 40 μS/cm |
Feed water temperature | 5–45°C (41–113°F) |
Inlet pressure | 1.4–6.9 bar (20–100 psig) |
Feed water pH | 4–11 |
Total chlorine, as Cl₂ | < 0.05 ppm |
Iron, as Fe | < 0.01 ppm |
Manganese, as Mn | < 0.01 ppm |
Sulfide, S²⁻ | < 0.01 ppm |
Total hardness, as CaCO₃ | < 1.0 ppm |
Dissolved organics, TOC as C | < 0.5 ppm |
Silica, SiO₂ | < 1.0 ppm |
Installation environment | Indoors, away from direct sunlight; maximum ambient temperature 45°C (113°F) |
The water quality limits above are feed-water requirements for operation.
4. Key Features & Benefits
Continuous production: Supplies deionized water continuously for industrial processes.
No chemical regeneration during normal operation: Produces deionized water without the acid or caustic regeneration used in conventional ion exchange.
Improved chlorine tolerance: The LX-Z series is designed for general industrial applications and has improved chlorine tolerance. The specified maximum total chlorine in the feed water is < 0.05 ppm.
Defined feed water limits: Published limits for RO permeate quality, temperature and pressure support system design and feed water checks.
5. Key Applications
Boiler makeup water for power plants
Water for hydrocarbon processing
Water for chemical processing
