Marine RO fresh water generator Technical Agreement for
Model: MRO-1D 1 tons/hour
1. General description
Fresh Water maker model MRO-1D. This water maker is designed to produce
drinking water from seawater.
Fresh Water maker model MRO-1D. was designed according the average seawater salinity 35000ppm.
Reverse Osmosis Fresh Water makerMRO-1D. with a capacity of 1 t/hour fresh
water by a seawater temperature from 10 to 32C°. The rest salinity will be various bellow 500 ppm for drinking water.
2 Technical specification
The water maker is specifically designed for seagoing vessels and offshore purposes.High pressure piping is made out of stainless steel AISI 316 suitable for pressure up to 70Bar, the connection between high pressure pump and the system consist out of a flexible high pressure hose.
The low pressure piping is made out of PPR or UPVC, this material is specially suitable for ships and offshore unit due to the flexibility and strength.
No. | Item |
|
1 | Voltage | 3x440VAC, 60Hz |
2 | Power consumption | 8.6kw （Include boost pump） |
3 | Control cabinet | Control voltage: 220VAC |
4 | Power Cable size | 3x6 mm2 |
5 | Capacity | 1ton/hour |
6 | Boosting inlet pressure | 0.1~1kg/cm2 (Positive) |
7 | Product water pressure | ≤3kg/cm2 |
8 | Salt content of sea water | ≤35000ppm |
9 | Sea water temperature | 10℃~32℃ |
10 | Raw water flow | 4 m3/h @4bar |
11 | Desalination rate | ≥98.5% |
12 | PH value of Raw Water | 3.0~10.0 |
13 | Recovery | ≈30% |
14 | Motor | IP54 |
15 | Working condition | 10℃~40℃ |
16 | Salt content of Fresh Water | ≤500ppm |

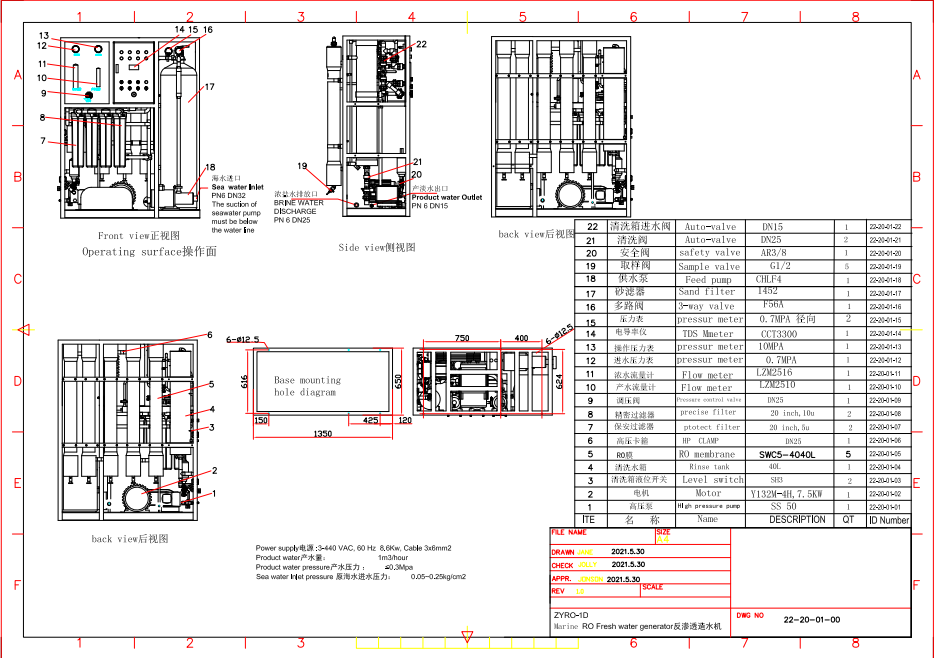

17 | Outline Dimensions | L×W×H=1350×820×1750 |
18 | Weight | Dry: ≈580kg Wet:≈650kg |
19 | Booster pump | One set |
20 | High pressure pump | One set |
21 | Membranes | DOW/HYDRANAUTICS |
22 | Inlet of Sea water | DN32 |
23 | BRINE WATER DISCHARGE | DN25 |
24 | Product water Outlet | DN15 |
