Low Pressure Commercial RO water treatment system without pretreatment

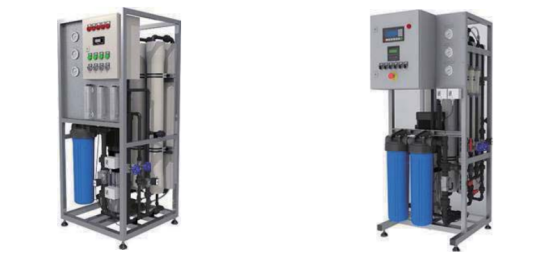

Low Pressure Commercial RO System
RO-LPV Series without pretreatment
RO-LPV Series Reverse Osmosis Systems have been engineered for capacities ranging from 1200GPD to 9000GPD (Feed TDS < 1500 ppm)
Features
• Vontron RO membrane
• ASME certified membrane housing
• CNP boost pump SS304
• UPVC high pressure piping
• Control box IP54 (painted carbon steel)
• Control system (Relay and timer control or Siemens PLC)
• Tank level control & Auto flush
• Pretreatment lockout control backup
Benefits
• Fully equipped and customizable
• Individually tested and preserved
• Expandable and skid mounted
• Low operation and maintenance costs
• Components easily accessible
• Easy maintenance and servicing
• Pre-plumbed, wired and assembled
• 1-year limited warranty
Model Number | RO-LPV -1500 | RO-LPV -3000 | RO-LPV -4500 | RO-LPV -6000 | RO-LPV -9000 |
Feed Water TDS | <1500ppm | <1500ppm | <1500ppm | <1500ppm | <1500ppm |
Nominal Permeate Rate | 0.25m³/hr | 0.5m³/hr | 0.75m³/hr | 1.0m³/hr | 1.5m³/hr |
Recovery Rate | 50~75% | 50~75% | 60~75% | 60~75% | 60~75% |
Motor HP | 1.5kw | 1.5kw | 1.5kw | 1.5kw | 2.2kw |
Wet Contact Material | SS304 | SS304 | SS304 | SS304 | SS304 |
Membranes Quantity | 1 | 2 | 3 | 4 | 6 |
Membrane Housing Quantity | 1 (single element) | 2 (single element) | 3 (single element) | 4 (single element) | 6 (single element) |
Inlet | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT |
Permeate | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT |
Drain | 1/2"BSPT or NPT | 1/2"BSPT or NPT | 1/2"BSPT or NPT | 1/2"BSPT or NPT | 1/2"BSPT or NPT |
CIP Inlet & Outlet | 3/4"BSPT or NPT | 3/4"BSPT or NPT | 3/4"BSPT or NPT | 3/4"BSPT or NPT | 3/4"BSPT or NPT |

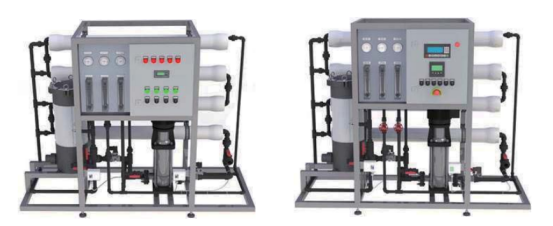

Low Pressure Commercial RO System
RO-LPH Series without pretreatment
RO-LPH Series Reverse Osmosis Systems have been engineered for capacities ranging from 5000GPD to 20000GPD (Feed TDS < 1500 ppm)
Features
• Vontron RO membrane
• ASME certified membrane housing
• CNP boost pump SS304
• UPVC high pressure piping
• Control box IP54 (painted carbon steel)
• Control system
(Relay and timer control or Siemens PLC)
• Tank level control & Auto flush
• Pretreatment lockout control backup
Benefits
• Fully equipped and customizable
• Individually tested and preserved
• Expandable and skid mounted
• Low operation and maintenance costs
• Components easily accessible
• Easy maintenance and servicing
• Pre-plumbed, wired and assembled
• 1-year limited warranty
Model Number | RO-LPH -6000 | RO-LPH -9000 | RO-LPH -12000 | RO-LPH-15000 | RO-LPH -18000 |
Feed Water TDS | <1500ppm | <1500ppm | <1500ppm | <1500ppm | <1500ppm |
Nominal Permeate Rate | 1.0m³/hr | 1.5m³/hr | 2.0m³/hr | 2.5m³/hr | 3.0m³/hr |
Recovery Rate | 60~75% | 60~75% | 65~75% | 65~75% | 65~75% |
Motor HP | 1.5kw | 2.2kw | 3kw | 3kw | 3kw |
Wet Contact Material | SS304 | SS304 | SS304 | SS304 | SS304 |
Membranes Quantity | 4 | 6 | 8 | 10 | 12 |
Housing Quantity | 4(single element) | 6(single element) | 4 (2-element) | 5 (2-element) | 6 (2-element) |
Inlet | 1.5"BSPT or NPT | 1.5"BSPT or NPT | 1.5"BSPT or NPT | 1.5"BSPT or NPT | 1.5"BSPT or NPT |
Permeate | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT |
Drain | 1/2"BSPT or NPT | 1/2"BSPT or NPT | 1/2"BSPT or NPT | 1/2"BSPT or NPT | 1/2"BSPT or NPT |
CIP Inlet | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT |
CIP Outlet | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT | 1"BSPT or NPT |
