Membranes 6000 GPD Reverse Osmosis System for Schools and Offices
Product Overview:
The 6000 GPD Reverse Osmosis System is designed to provide efficient and reliable water purification solutions for commercial and industrial use, including schools, offices, restaurants, and other small to medium-sized establishments. This skid-mounted reverse osmosis system is capable of producing high-quality drinking and process water by efficiently removing dissolved solids, contaminants, and impurities from feed water with TDS levels of up to 2,000 ppm. With a desalination rate of 99%, this system ensures clean, safe, and fresh water for various applications, including drinking, food processing, and industrial uses.
Key Features:
Feed Water TDS: < 2,000 ppm
Recovery Rate: 65~75%
Desalination Rate: 99%, 99.7%
Material: SS304/SS316L, Carbon Steel
pH Range: 4~9
Water Temperature: 5~35°C
Chlorine Level: Free Chlorine < 0 mg/L
Total Suspended Solids (TSS): < 5 mg/L
Silt Density Index (SDI): < 3
Capacity: 0.5-100 m³/h (depending on model)
Voltage Options: 380V, 415V, 220V (customizable)
Warranty: 1 Year
Applications:
This versatile reverse osmosis water treatment system is ideal for various sectors, ensuring access to pure water for a wide range of needs:
Schools & Offices
Municipal water supply
Wastewater treatment
Restaurants & Hotels
Food and Beverage Processing
Agriculture & Boiler Feed
Pharmaceutical & Medical Applications
Military & Disaster Relief
High-Efficiency Membranes and Robust Construction:

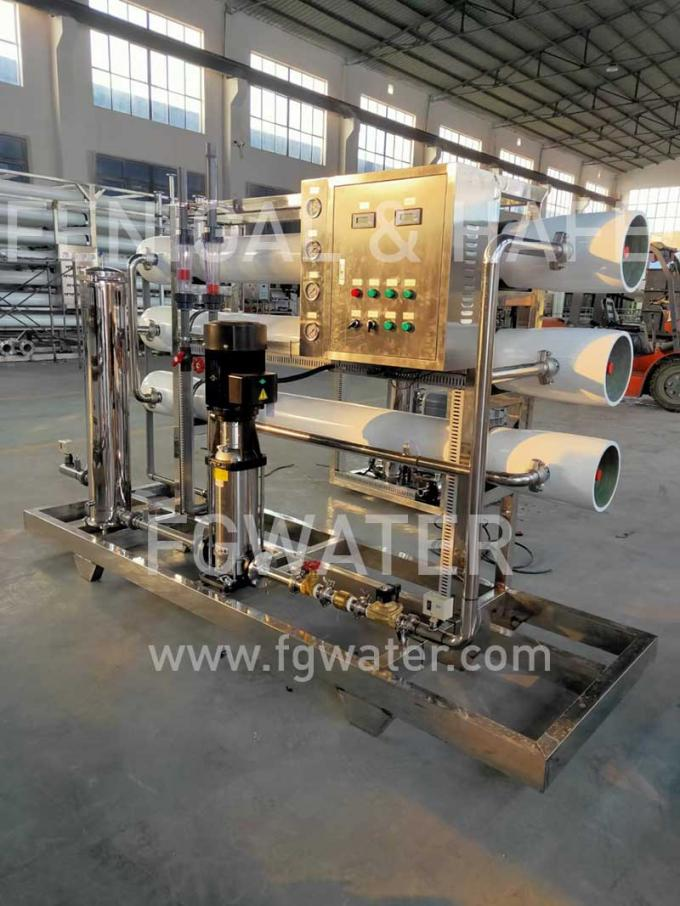

The RO membranes used in this system (Vontron, Hydranautics, or DOW 4040) are designed for durability and superior filtration performance. The system is equipped with a high-quality vertical multistage centrifugal boost pump, made from corrosion-resistant SS304/SS316 materials, ensuring optimal water flow and efficiency. The FRP pressure vessel with a 300PSI rating ensures durability and long service life, even under high-pressure conditions.
Product Specifications:
| Model | Capacity (GPD) | Power (50Hz) | RO Membranes | Dimensions (mm) | Voltage Options |
|---|
| SRO-R-6000 | 6000 GPD | 1.00 m³/h | 4040 | 700×1650×1350 | 380V, 415V, 220V |
| SRO-R-9000 | 9000 GPD | 1.50 m³/h | 4040 | 700×1650×1350 | 380V, 415V, 220V |
| SRO-R-12000 | 12000 GPD | 2.00 m³/h | 4040 | 850×2350×1350 | 380V, 415V, 220V |
| SRO-R-15000 | 15000 GPD | 2.50 m³/h | 4040 | 850×2350×1350 | 380V, 415V, 220V |
| SRO-R-18000 | 18000 GPD | 3.00 m³/h | 4040 | 850×2350×1350 | 380V, 415V, 220V |
Benefits:
Customizable & Fully Equipped: Easily adaptable to meet specific water purification requirements.
Low Operational & Maintenance Costs: Designed for minimal energy consumption and reduced maintenance needs.
Compact Design: Ideal for spaces where efficient use of space is essential, such as schools and offices.
Long Service Life: Durable materials and robust construction ensure long-term reliability.
Environmentally Friendly: The system provides a sustainable solution to water treatment with a high desalination rate and low waste water generation.
Why Choose This System for Your School or Office?
The 6000 GPD Reverse Osmosis System is an excellent choice for schools and offices seeking a high-efficiency, reliable, and cost-effective water filtration solution. Its compact, skid-mounted design ensures easy installation in a variety of environments, while its 99% desalination rate guarantees access to purified water for all daily needs.
