    Rogen Series BWRO

    Rogen-S - ROgenRONSeriesCommercialReverseOsmosisSystemCAPACITY:7,000~37,000GPD/27~141M/DAYCesigned to produce low dissolved solids water from tap or well water, these RO systems use high efficiency reverse osmosis membranes. These RO systems are designed to work

    Rogen-S

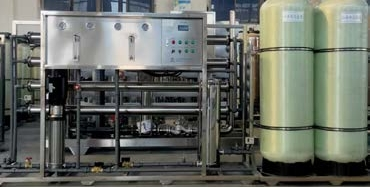

    RON Series Commercial Reverse Osmosis System CAPACITY: 7,000~37,000GPD / 27~141M /DAY

    Cesigned to produce low dissolved solids water from tap or well water, these RO systems use high efficiency reverse osmosis membranes. These RO systems are designed to work at pressures of 150-250 psi for higher TDS water and use TW reverse osmosis membranes. The TW RO membranes offer higher salt removal and the higher operating pressure overcomes the loss of membrane flow due to higher TDS level.


    ** Product pictures are only for reference. Final products may vary based on actual design requirement.

    Standard Features

    • 8”TFC spiral wound membranes

    • Stainless steel multi-stage pump with TEFC motor

    • FRP membrane housings

    • 5 micron cartridge prefilter

    • Microprocessor based control panel

    • Programmable time delay and set points

    • LCD screen

    • Motor starter

    • Low pressure switch

    • High pressure switch

    • Liquid filled pressure gauges

    • Permeate conductivity monitor

    • Permeate & concentrate flow meters

    Available Options

    • Remote monitoring

    • Feed water conductivity monitor

    • Membrane cleaning skid

    • Export crating

    • Product tank level switch

    • Feed pH monitor with sensor

    • Feed ORP monitor with sensor

    • Water and hour meters

    • Chemical dosing systems

    • Media prefiltration systems

    • Ozonation and UV sterilization systems

     • Water softeners

    • Skid mounted with pre or post treatment

     • Containerized RO systems

    The Ideal Applications For Brackish Reverse Osmosis Systems Include:

    ROM Series Industrial Reverse Osmosis System Capacity: 28,000~173,000GPD / 109~655m /Day

    The spiral membrane is constructed from one

    or more membrane envelopes wound around a

    perforated central tube. The permeate passes

    through the membrane into the envelope and

    spirals inward to the central tube for collection.

    The layers of the membrane envelope are

    detailed in the diagram to the right.



    Operation Specifications

    • Max. feed water temperature: 42°C

    • Equipment upgrade for TDS up to 5,000 ppm • Hydrogen Sulfide must be removed

    • Max. Silica tolerance: 25 ppm @ 60% recovery

    • Feed water TDS: 0-2,000 ppm

    • Operating pressure: 150 to 250 psi

    • pH tolerance range: 3-11

    • Max. Iron content: 0.05 ppm

    • Feed water pressure: 20 to 80 psi

    • Hardness over 1 GPG requires water softener

    • Turbidity should be removed

    • Operate at higher TDS by lowering recovery
