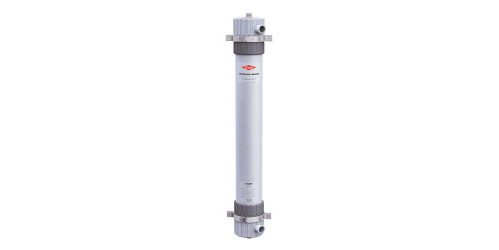

DOW FILMTEC SFP-2880 Ultrafiltration Modules ultrafiltration membrane uf membrane
The SFP series of the DOW ultrafiltration modules are constructed with sturdy outside-in PVDF fiber technology. The hollow fibers exhibit high cleanability, low chemical consumption, high recovery, and a superior blend of mechanical properties and chemical resistance. It provides customers with a proven product having a long list of installations worldwide.
DOW ultrafiltration SFP-2880 offers the highest membrane active area within the SFP series and is an outstanding choice for large installations.
Advantages
Exceptional removal of colloids, particles, and bacteria
Low chemical consumption
Capability to treat demanding feed water with limited pretreatment
High chemical-resistance PVDF enabling aggressive chemical use for treating challenging water when necessary
Mechanically robust fibers ensuring long module life
Important information
Proper start-up of a UF system is crucial to prepare the membranes for operating service and to avoid membrane damage. Following the correct start-up sequence also helps guarantee that system operating parameters conform to design specifications, enabling the achievement of system water quality and productivity goals. Before initiating system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration, and other system checks should be accomplished. Please refer to the product technical manual.
Operation guidelines
Avoid any sudden pressure variations during start-up, shutdown, cleaning, or other sequences to prevent potential membrane damage. Flush the UF system to remove the shipping solution before start-up. Remove residual air from the system before start-up. Manually start the equipment. Aim for a permeate flow of 60% of the design during initial operations. Depending on the application, the permeate obtained from initial operations should be discarded. Please refer to the product technical manual.
General information
If the operating limits and guidelines provided in this bulletin are not strictly adhered to, the limited warranty will be null and void. To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.
MODELS
Specifications
| Model | Type | Part# | Membrane area | Module volume | Weight (empty/ water filled) |
| m2 | ft2 | Liters | Gallons | Kg | lbs |
| SFP-2880 | Pretreatment | 280934 | 77 | 829 | 39 | 10.3 | 61/100 | 135/220 |
FEATURES
The DOW Ultrafiltration (UF) modules are fabricated from high-strength, hollow fiber membranes, possessing outstanding features and benefits:
A 0.03 μm nominal pore diameter for the elimination of bacteria, viruses, and particulates, including colloids, to safeguard downstream processes such as RO.
PVDF polymeric hollow fibers for high strength and chemical resistance, enabling a long membrane lifespan.
Hydrophilic PVDF fibers for effortless cleaning and wettability, assisting in maintaining long-term performance.
An Outside-In flow configuration for high tolerance to feed solids, helping to minimize the need for pretreatment processes.

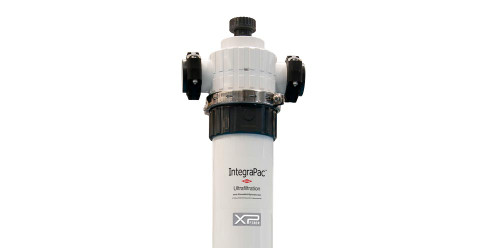

U-PVC housing, facilitating the elimination of the requirement for costly pressure vessels.
This module is an ideal option for systems with capacities exceeding 50 m³/hr (220 gpm). Larger and longer, with an 8-inch diameter and 80-inch length, along with an increase in packing density to 10,000 fibers, this module offers the highest effective membrane area among the DOW Ultrafiltration modules. The 2880 contributes to a more economical membrane system design.
DOW Ultrafiltration Modules can be employed in a wide range of treatment applications, such as surface water, seawater, industrial wastewaters, and secondary effluent wastewater.
Operating Parameters |
|---|
| SI units | US units |
| Filtrate Flux @ 25°C | 40-120 l/m²/ hr | 24-70 gfd |
| Flow range | 3.1-9.3 m³/hr | 13.6 . 40.9 gpm |
| Temperature | 1-40°C | 34-104°F |
| Max. inlet module pressure (@ 20°C) | 6.25 bar | 93.75 psi |
| Max. operating TMP | 2.1 bar | 30 psi |
| Max operating air scour flow | 12 nm3/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2-11 |
| NaOCl (max.) | 2,000 mg/L |
| TSS (max.) | 100 mg/L |
| Turbidity (max.) | 300 ntu |
| Particle size (max.) | 300 u |
| Flow configuration | Outside in, dead end flow |
| Expected filtrate turbidity | <0.1 NTU |
| Expected filtrate SDI | <2.5 |
APPLICATIONS
For application cases, please click:https://www.fgwater.com/Industries/
