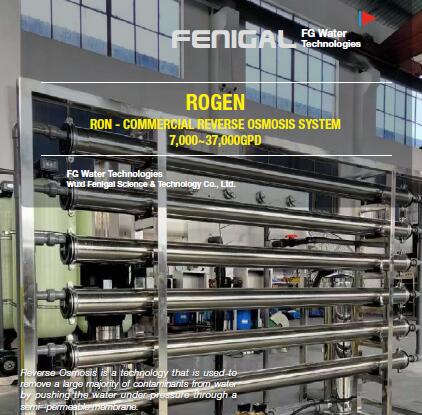

Rogen/ RON - COMMERCIAL Reverse Osmosis System/ 7,000~37,000GPD

TWRO SYSTEM, Rogen/ RON - COMMERCIAL Reverse Osmosis System 7,000~37,000GPD

Designed to produce low dissolved solids water from tap or well water, these RO systems use high efficiency reverse osmosis membranes. These RO systems are designed to work at pressures of 150-250 psi for higher TDS water and use TW reverse osmosis membranes. The TW RO membranes offer higher salt removal and the higher operating pressure overcomes the loss of membrane flow due to higher TDS level.

Standard Features

Available Options

• 4” TFC spiral wound membranes
• Stainless steel multi-stage pump with TEFC motor
• FRP membrane housings
• 5 micron cartridge prefilter
• Microprocessor based control panel
• Programmable time delay and set points
• LCD screen
• Motor starter
• Low pressure switch
• High pressure switch
• Liquid filled pressure gauges
• Permeate conductivity monitor
• Permeate & concentrate flow meters

• SS pressure vessels
• High pressure switch
• pH or ORP meter
• Recycle flow meter
• Product tank float switch
• Automatic flush
• Export wood crating
• Media filters
• Ozonation system/UV sterilizers
• Water softeners
• Skid mounted with pre and post treatment
• Solar powered systems

The Ideal Applications For Brackish Reverse Osmosis Systems Include:

Metal Finishing
Beverage Production and
Bottled Water
Electronics
Pharmaceutical
Mining Industry
Chemical Blending

Safe Drinking Water
Rinse Water
Power Plants
Plating Operations
EDI Pre-treatment
Food and Beverage

Spot Free Product Rinse
Cooling Towers
Laboratory
Boiler Feed Water
Ice Manufacturing
Ion Exchange Pre-treatment

Operation Conditions:

• Max. feed water temperature: 42°C
• Equipment upgrade for TDS up to 5,000 ppm
• Hydrogen Sulfide must be removed
• Max. Silica tolerance: 25 ppm @ 60% recovery
• Feed water TDS: 0-2,000 ppm
• Operating pressure: 150 to 250 psi

• pH tolerance range: 3-11
• Max. Iron content: 0.05 ppm
• Feed water pressure: 20 to 80 psi
• Hardness over 1 GPG requires water softener
• Turbidity should be removed
• Operate at higher TDS by lowering recovery
