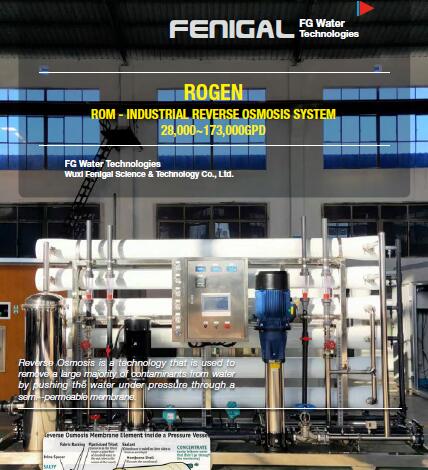

Rogen/ ROM - Industrial Reverse Osmosis System/ 28,000~173,000GPD

TWRO SYSTEM, Rogen/ ROS - COMMERCIAL Reverse Osmosis System/ 1,800~18,000GPD

Designed to produce low dissolved solids water from tap or well water, these systems use highly efficient RO Membranes. The product water is used in applications such as rinse water, pharmaceutical, food processing, bottled water, hotels, beverage, hospitals, and a wide variety of other applications.

Standard Features

Available Options

• 8” TFC spiral wound membranes
• Stainless steel multi-stage pump with TEFC motor
• FRP membrane housings
• 5 micron cartridge prefilter
• Microprocessor based control panel
• Programmable time delay and set points
• LCD screen
• Motor starter
• Low pressure switch
• High pressure switch
• Liquid filled pressure gauges
• Permeate conductivity monitor
• Permeate & concentrate flow meters

• Remote monitoring
• Feed water conductivity monitor
• Membrane cleaning skid
• Export crating
• Product tank level switch
• Feed pH monitor with sensor
• Feed ORP monitor with sensor
• Water and hour meters
• Chemical dosing systems
• Media prefiltration systems
• Ozonation and UV sterilization systems
• Water softeners
• Skid mounted with pre or post treatment
• Containerized RO systems

The Ideal Applications For Brackish Reverse Osmosis Systems Include:

Metal Finishing
Beverage Production and
Bottled Water
Electronics
Pharmaceutical
Mining Industry
Chemical Blending

Safe Drinking Water
Rinse Water
Power Plants
Plating Operations
EDI Pre-treatment
Food and Beverage

Spot Free Product Rinse
Cooling Towers
Laboratory
Boiler Feed Water
Ice Manufacturing
Ion Exchange Pre-treatment

Operation Conditions:

• Max. feed water temperature: 42°C
• Equipment upgrade for TDS up to 5,000 ppm
• Hydrogen Sulfide must be removed
• Max. Silica tolerance: 25 ppm @ 60% recovery
• Feed water TDS: 0-2,000 ppm
• Operating pressure: 150 to 250 psi

• pH tolerance range: 3-11
• Max. Iron content: 0.05 ppm
• Feed water pressure: 20 to 80 psi
• Hardness over 1 GPG requires water softener
• Turbidity should be removed
• Operate at higher TDS by lowering recovery
