Flat Sheet MBR Membrane Reactor Module

Module Introduction

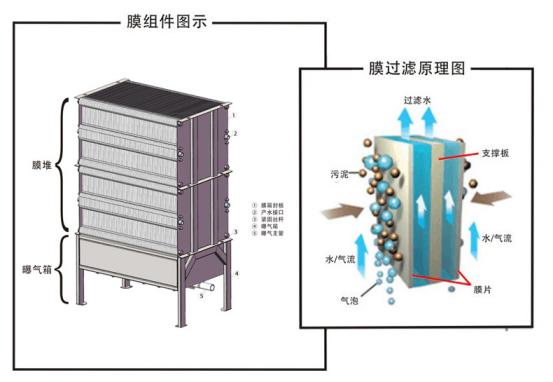

Flat sheet membrane module structure includes two parts of membrane element box and  aeration case:

1. Membrane element box: the main function is to collect the MBR system of water production

A. Membrane elements

B. A set of pipes: centralized filtered water from each hose is connected to the outlet pipe, processing;

C. Hose connecting the film element and a set of pipes;

D. Fixed plate membrane element, membrane element placed vibration and floating;

E. Spoiler: membrane element distance fixed.

2. Aeration case: the main function of the gas water mixture, scour surface, reduce or prevent membrane fouling and provide biochemical oxygen demand. The aeration pipe: cleaning air film surface.

The Characteristics of Flat Sheet Membrane
1. Preprocessing requirements is low, long service life of membrane, the surface is not easy to jam, easy maintenance
2. Under the condition of high concentration of activated sludge can run normally, can reduce the aeration tank volume
3. Daily management is simple, do not need to back flush, only 1 or 2 times a year to clean
4. Membrane filtration resistance is low, can take advantage of the liquid level difference work, omit suction pump and can reduce energy consumption

5.  Can design become more compact two-layer structure, reduce the device volume,and reduce the construction cost

The Advantages of Our Flat Membrane

Our production of flat membrane technology, with independent MBR multilayer flat membrane patent, to solve various water treatment industry provides a wide range of flat MBR template technology. Compared with other flat membrane, our flat membrane has the following advantages:

1. The filling density increased 20%;

2. Aeration saving 20%;

3. Installation efficiency increased by 100%

And the produced water quality is better than the national sewage discharge level A standard, can be used for greening irrigation, car washing, road dust removal and washing, flushing, flushing, fire fighting, landscape supplementary water and other non-drinking water places.
