Agricultural Irrigation Filter Tank 4896 28-38T/H 6'' Flange FRP Material
Agricultural irrigation filter tank, as the core pretreatment equipment of farmland irrigation systems, is made of FRP (fiberglass reinforced plastic), providing clean water sources for agricultural production. FRP is a non-metallic composite material composed of resin and fiberglass. The tank liner is made of high-quality HDPE material, forming a continuous seamless inner liner shell through blow molding technology, which has both corrosion resistance and structural stability, making it an ideal choice in the field of agricultural irrigation.
Core Parameters
This agricultural irrigation filter tank has an imperial size of 4896, with a diameter and height of φ1200×2400mm. It adopts a Top&Bottom Opening 6" Flange design, facilitating installation, maintenance and filter material replacement; the Design Flow Rate is stable at 28.0～38.0T/H, which can meet the continuous water supply needs of large-scale farmland irrigation systems.
Size(inch) | Diam&Height(mm) | Opening(inch) | Design Flow Rate(T/H) |
4896 | φ1200×2400 | Top&Bottom Opening 6" Flange | 28.0～38.0 |
Product Advantages and Functions
High-quality material: The FRP tank body is formed by winding fiberglass, and the tank mouth adopts one-piece molding technology with clear threads and tight fit, effectively preventing leakage and adapting to complex farmland environments.

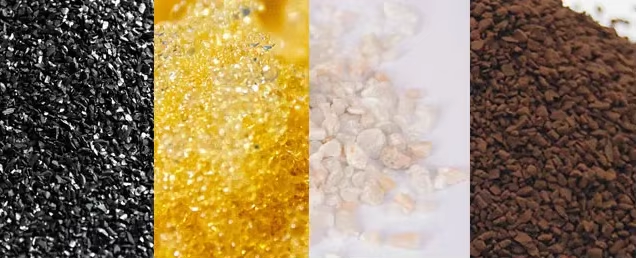

Flexible filter material selection: Different filter materials can be matched according to raw water quality — activated carbon removes odors and improves water taste; ion exchange resin reduces raw water hardness and solves scaling problems; quartz sand removes suspended solids and large particles of impurities in water; manganese sand removes iron, manganese and other elements, comprehensively purifying irrigation water.
Widely used scenarios: Suitable for medium tanks for water purification treatment, such as medium filters and water softeners, playing an important role in agricultural irrigation, food environmental protection and other fields.

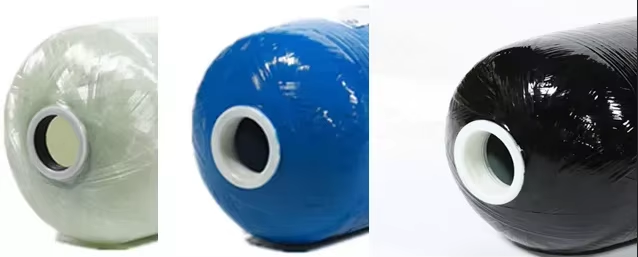

Intimate service: Provides OEM service and multiple color options to meet personalized needs; equipped with a one-year remote warranty service (video online remote guidance) to ensure stable operation of the equipment (free delivery and replacement services are not included for accessories damaged by external forces).
Agricultural Application Case
A large ecological farm once had frequent clogging of the drip irrigation system due to excessive impurities in irrigation water, with annual cost of replacing drip tapes exceeding 80,000 yuan, and crop yield decreased by 15% due to uneven water supply. After introducing the agricultural irrigation filter tank, through the synergistic filtration of quartz sand and manganese sand, the removal rate of suspended solids in water reached 95%, and the iron and manganese contents dropped below the standard value. The design flow rate of 28.0～38.0T/H perfectly matches the irrigation needs of the farm's 500 mu farmland. The clogging rate of the drip irrigation system is reduced by 90%, saving 65,000 yuan in annual replacement costs. The crop yield has increased to 1.2 times the original, with annual income increasing by more than 300,000 yuan.
