Marina-e

VR Series des alination equipmen

VR Series Desalination

Product introduction

1.VR series is our patented frame look

2.Specially made long life auto suction supplying pump

3.Direct shaft HP pump

4.supplying pump is placed alone

5.The water output of VR series desalination machine can be 300lpd-5tpd

7. Fully auto flushing system is optional base on our CTM controller ( for 110V, 220V only).

Product performance characteristics

1.One button start to produce fresh water

2.The raw water pump and high-pressure pump can be started sperately

3.Low voltage protection during start-up

4.TDS pen is included in the package for fresh water quality monitoring.

5.Auto Priming pump is included in the package for fast start.

6.half year consumable prefilter is included

7.SS316L is Optional to improve the plant duty time.

8.Max working pressure up to 70 bar.

9.Output water pressure hold < 1 bar

10.the package include fresh water tube of 3 meters

11.flushing tank is included to faciliate the membrane flushing

12.Low noise and low vibration due to experienced configs

13.product tank floating ball is used

after-sale service

Product shelf life: one year (Except consumables)

After sales service period: lifetime

One year later, the equipment appears to be in trouble:

1.It can be solved by telephone and video, and the replacement of accessories by mail

2.It can be sent back to the factory for repair

3.Staff can be sent to repairthe user's equipment

In time response to customers technical problems;

New products update for customers' Reference

Desalintion lntroduction

        Water desalination, it is using desalination to produce fresh water. Our company adopts the reverse osmosis separation technology for seawater desalination. This technology is internationally recognized as the and effective desalination technology. Dilution principle mainly rely on reverse osmosis membrane under certain pressure to push the solvent and solute separated, this is its operating characteristics. So as to achieve the purpose of desalination. Reverse osmosis desalination process does not need to heat the seawater that is only operating at normal temperature. So it is very easy and simple operation. However, low energy consumption, low cost of water, so that the production will to be easily maintainable and modularization. That is why it can quickly occupy the market in the world.
        Our desalination equipment is designed in a compact, beautiful and practical as a concept. You can choose modularization and integration. Casing and pipeline are all made of corrosion-resistant materials, and core components adopt international famous brands. According to the equipment of flow rate, combines the advantages of unique and efficient energy recovery technology. Therefore, all the advantages to ensure that our products have small volume, exquisite appearance, stable performance, low energy consumption, safety and reliability, and so on. We can be designed and configured according to customer requirements.

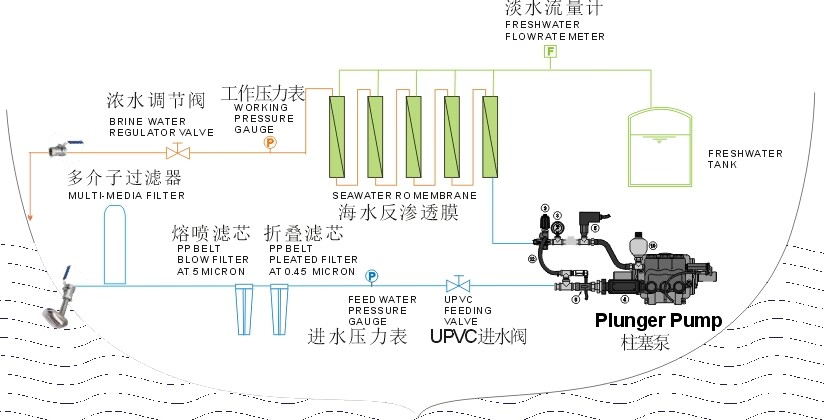

Process flow diagram
