Marina Series SWRO

Professional Product Detail

Marina-M

Widely used in offshore drilling platforms, ocean fishing, freighters, and islands. Main business: seawater desalination equipment, seawater desalination device, seawater desalination system, reverse osmosis seawater desalination equipment, water generator, desalination device, seawater desalination

Category: Marina Series SWRO
Marina-M

Widely used in offshore drilling platforms, ocean fishing, freighters, and islands. Main business: seawater desalination equipment, seawater desalination device, seawater desalination system, reverse osmosis seawater desalination equipment, water generator, desalination device, seawater desalination machine


Product Description:

1.High quality reverse osmosis membrane Desalination rate>99.5%

2.High quality high pressure pump

3. Rust protection Corrosion resistant

4.Working life 15-20years Self protection design

5.Applicable power: 220V/50HZ 380V/50HZ 440V/60HZ

6.Product certificate: CCS



Advantages Of Marina SWRO

  • The core membrane technology is used to reduce energy consumption, and the selection of equipment, materials and accessoriesensures a long service life and low maintenance costs for the system.

  • The water quality testing control and system maintenance plan can ensure the long-term stability of the effluent water quality, and the water quality has passed the national testing and certification, saving time, worry and peace of mind.

  • The high and low pressure protection switch is set according to the process parameters, which can automatically switch, automatically interlock and alarm, and stop to protect the high pressure pump and reverse osmosis membrane elements.

  • In terms of space utilization and rational use of technology, based on the modular design concept, the space configuration is more reasonable, the construction is more convenient and fast, and at the same time it meets different needs.

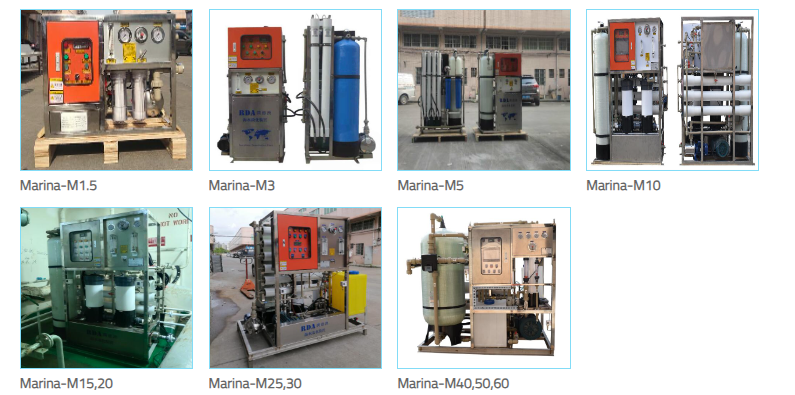

Marina M - Product Range

Model No.RO Permeate
(m3/d)		Desalination
rate % >		Saline Capacity
of output water(mg/l)		Operation Pressure (Mpa)Power
Consumption
(kw)		Weight
(kg)		Size
L*W*H
(mm)
Marina-M1.51.599.5≤7003.5-5.51.11001100*500*460
Marina-M3399.5≤7003.5-5.51.5150500*570*1350
Marina-M5599.5≤7003.5-5.52.2400910*500*1540
Marina-M101099.5≤7003.5-5.55.56001520*7801935
Marina-M202099.5≤7003.5-5.5109001520*830*2025
Marina-M303099.5≤7003.5-5.51512002440*1000*2120
Marina-M404099.5≤7003.5-5.51516002300*1100*2310
Marina-M505099.5≤7003.5-5.518.520002300*1100*2310

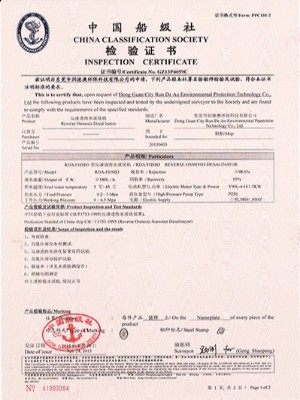

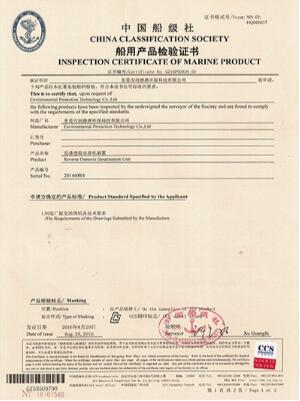

CCS Certification

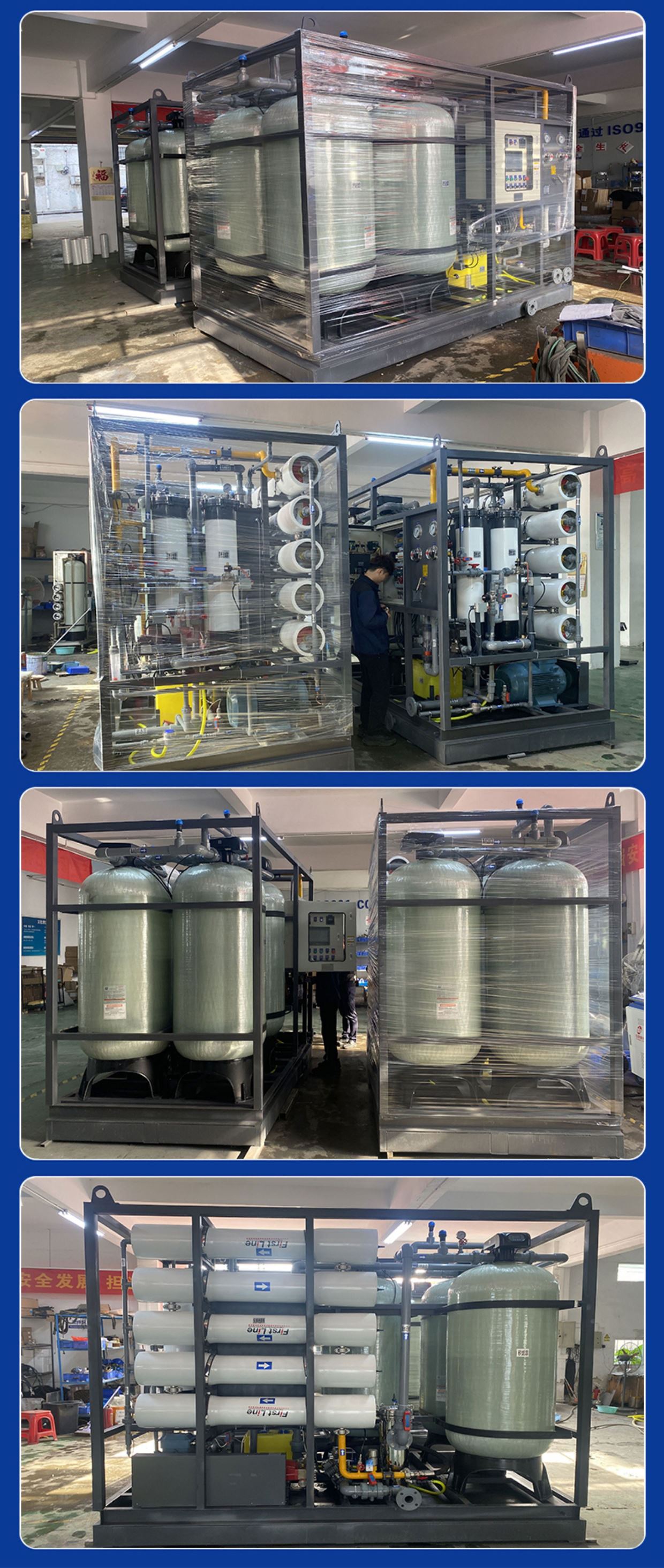

SWRO Factory Workshop
