Marina-C

100-320 tons Daily container-type seawater desalination equipmentProduct ParametersContainerized 100-320 Tons Per Day Desalination PlantProduct ModelMarina-C100/120/150/200/320Power25Kw/37Kw/37Kw/60Kw/49KwSystem Recovery Rate≈35%(Depending On Temperature And Water Quality)Power SupplyAc380V/50Hz/3ф

Category: Marina Series SWRO

100-320 tons Daily container-type seawater desalination equipment

Product Parameters

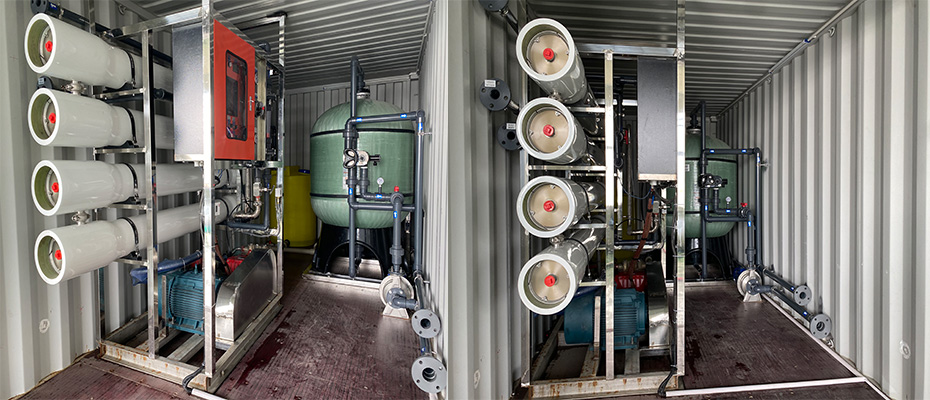

Containerized 100-320 Tons Per Day Desalination Plant
Product Model	Marina-C100/120/150/200/320	Power	25Kw/37Kw/37Kw/60Kw/49Kw
System Recovery Rate	≈35%(Depending On Temperature And Water Quality)	Power Supply	Ac380V/50Hz/3ф
Water Quality	Comply With Gb5749-06 Drinking Water Quality Standard	Electrical Control Protection Level	Ip56
Duct Color	Primary Colors	Material Composition	I316L Stainless Steel
Main Accessories	The Original German Speck Brand And The Us Dow Brand For Reverse Osmosis Membranes.
System Functions	1、High-Pressure Pump Water Overpressure Protection, When The High-Pressure Pump Water Pressure Exceeds 3.0Mpa, The Equipment Automatically Shut Down And Sound And Light Alarm. 2、Under-Pressure Protection When The Water Inlet Pressure Of High-Pressure Pump Is Insufficient. When The Water Inlet Pressure Of High-Pressure Pump Is Lower Than 0.05Mpa Due To Insufficient Water Supply For Pre-Treatment, It Will Automatically Stop And Issue Sound And Light Alarm. 3、Configured With Manual Multi-Way Valve, It Can Filter, Backwash And Forward Flush The Sand Filter Easily And Quickly As Needed. 4、Touch Screen Control, With Schneider Electrical Components, Alarm System With Manual Confirmation And Silencing Function. 5、Configuration Of Reverse Osmosis Membrane Cleaning System, Physical Cleaning, Concentrated Water Replacement, Chemical Cleaning And Filling Of Protective Liquid For Reverse Osmosis Membrane Components.

Characteristics And Advantage

1、Inverter Start;

2、German Sepck High Pressure Pump;

3、High And Low Pressure Protection Function;

4、316L Stainless Steel Pipe Fittings;

5, The United States Dow Reverse Osmosis Membrane;

6, Two Pre-Treatment, Play a Double Into The Protection;

7, Online Instrumentation Display;

8, Double-Door Electric Control Box (Salt Spray Can Not Enter),

9, 100 Kg High-Pressure Membrane Shell;

10, Comes With Cleaning Medicine Tank;

11, Schneider Electric (More Stable);

12, According To The Actual Needs Of Users Personalized Specific.
