Product Description:

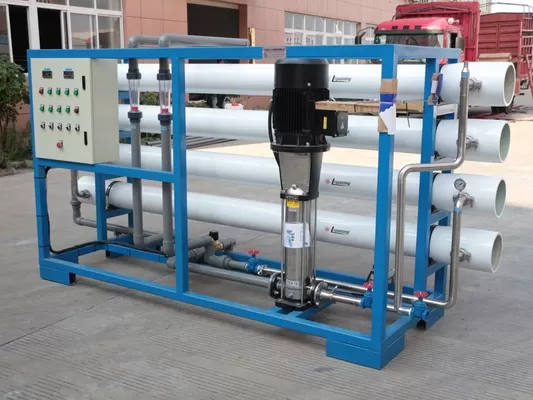

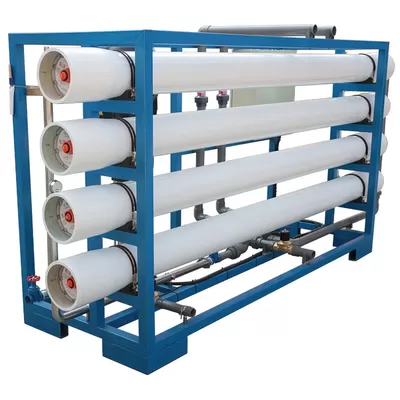

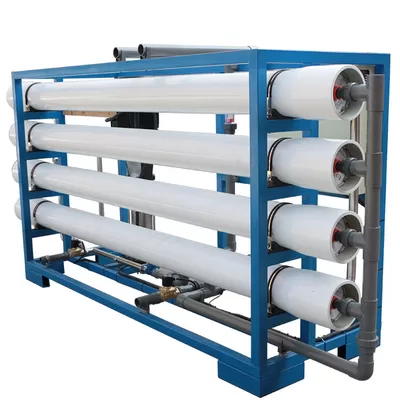

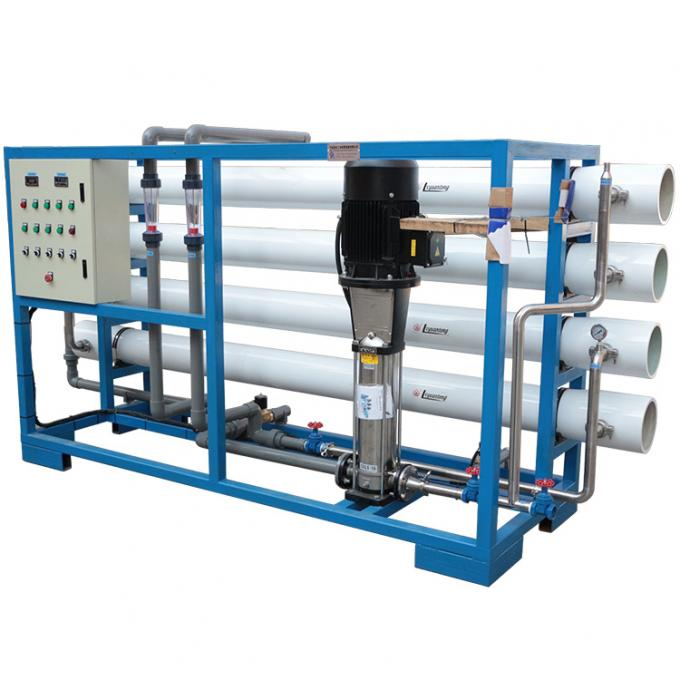

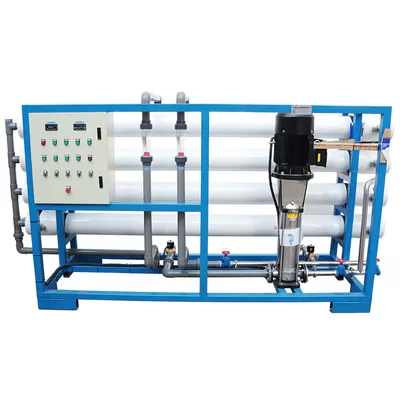

The 12000L/h (12TPH) Automatic Aqua Pure Reverse Osmosis System is designed for efficient treatment of seawater, brackish water, underground water, borehole water, or tap water. It converts raw water into safe, high-quality water suitable for drinking, bottling, industrial processes, or mineral water production. This system can effectively remove suspended solids, colloids, organic substances, heavy metal ions, bacteria, viruses, and 99% of dissolved salts, ensuring reliable water purification performance. Featuring an automatic control system and a skid-mounted design, the unit is ideal for bottling plants, food and beverage industries, and municipal or commercial water treatment.
Process Flow:
Raw Water → Raw Water Tank → Raw Water Pump → Quartz Sand Filter → Activated Carbon Filter → Softener (Optional) → Precision Filter → High Pressure Pump → RO System → Pure Water Tank → Booster Pump → UV Sterilizer / Ozone Generator (Optional) → Water Distribution Points
System Configuration:
| No. | Name | Function | Remarks |
|---|
| 1 | Raw Water Tank | Stores water to ensure stable and continuous supply for the entire system | Provided by customer (to avoid high freight due to large size) |
| 2 | Raw Water Pump / Booster Pump | Provides necessary pressure for pretreatment filtration | CNP or Grundfos brand available |
| 3 | Mechanical Filter / Quartz Sand Filter | Uses fiberglass or stainless steel vessels with quartz sand to remove large particles, suspended solids, and colloids |
|
| 4 | Activated Carbon Filter | Uses fiberglass or stainless steel vessels with activated carbon to remove color, odor, chlorine, and organic matter |
|
| 5 | Security Filter / PP Sediment Filter | Prevents particles, bacteria, and viruses from reaching the RO membrane; filtration accuracy is 5 microns |
|
| 6 | High Pressure Pump | Provides the working pressure needed for RO system operation and ensures stable pure water production | CNP or Grundfos pump optional |
| 7 | RO (Reverse Osmosis) System | Removes particles, colloids, organics, heavy metals, bacteria, viruses, and 97%+ of dissolved salts using USA DOW Filmtec or VONTRON membranes |
|
| 8 | UV Sterilizer / Ozone Generator | Kills bacteria; UV is used for direct drinking water, while ozone is suitable for bottled water applications | Optional |
Technical Specifications:
| Parameter | Description |
|---|
| Model Number | RO-12TPH, 1-14 |
| Permeate Flow | 12,000 L/h |
| Recovery Rate | 65~75% |
| Desalination Rate | 99% ~ 99.7% |
| Feed Water TDS | <2,000 ppm |
| Water Temperature | 5~35˚C |
| Design | Skid-Mounted |
| Material | SS304 / SS316L Stainless Steel, Carbon Steel |
| Control System | Manual / Electronic / PLC |
| RO Membranes | Vontron, Hydranautics, DOW (4040 model) |
| Membrane Housing | Stainless Steel |
| Pump Brand | CNP / Grundfos |
| Power Supply | 380V / 415V / 220V (customizable) |
| Certifications | CE, NSF, etc. |
| Place of Origin | China |
| Brand Name | Fenigal / OEM |
| Minimum Order Quantity | 1 Set |
| Packaging | Standard Export Crate/Carton or Film-Wrapped |
| Delivery Time | 15–30 Days |
| Payment Terms | T/T, PayPal, Western Union, etc. |
| Monthly Supply Capacity | 50 Sets/Month |
For pricing, technical support, or distributor opportunities, please contact us.
