Hot-Selling UF Solution for RO Pretreatment Now Available for MENA & Southeast Asia!

We’re excited to introduce one of our top-performing ultrafiltration (UF) solutions — now readily available to engineering companies across the Middle East, North Africa, and Southeast Asia!

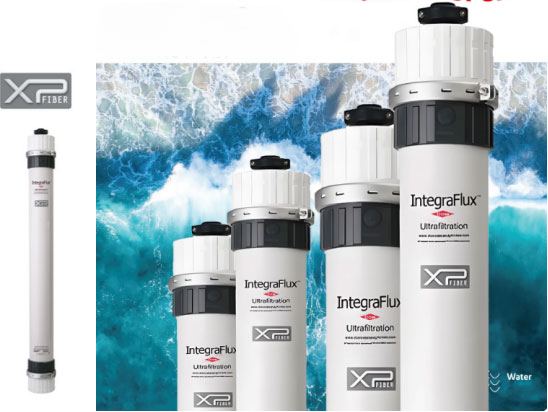

Why Choose the DuPont™ SFP/XP Series?

Originally developed under DOW™ Ultrafiltration, the SFP/XP series has earned a global reputation as a trusted pretreatment step for reverse osmosis (RO) systems in municipal, industrial, and seawater desalination projects.

Now rebranded as:

Ø XP 51 IG (formerly SFP-2660XP)

Ø XP 77 IG (formerly SFP-2860XP)

These UF modules are in high demand worldwide — and we’re fully stocked to help you meet urgent deadlines and technical requirements.

The data table is as follows

XP 77 IG (formerly SFP-2860XP)

Basic Information

Parameter	Details
Part No / GMID	12091621
Filtration Mode	Out-In Pressurized
Membrane Type	Hollow Fiber
Membrane Material	PVDF (Polyvinylidene Fluoride)
Pore Size	0.03 μm
Operating Process	Dead-end Filtration
Wetted Materials	Polyurethane, uPVC, EPDM, ABS

Module Dimensions

Parameter	Metric	Imperial
Active Membrane Area	77 m²	829 ft²
Overall Length (L)	2,360 ± 3.0 mm	92.9 ± 0.1 in
Length L3	2,320 ± 3.0 mm	91.3 ± 0.1 in
Length L2	2,130 ± 3.0 mm	83.9 ± 0.1 in
Length L1	2,000 ± 3.0 mm	78.7 ± 0.1 in
Module Diameter (D)	225 mm	8.9 in
Width (W1)	180 mm	7.1 in
Width (W2)	342 mm	13.5 in
Feed/Filtrate Port	DN50 (51 mm)	2.0 in

Weight & Volume

Parameter	Metric	Imperial
Shipping Weight	73 kg	161 lbs
Weight (Empty)	61 kg	134 lbs
Weight (Filled)	100 kg	220 lbs
Hold-Up Volume (Feed, CIP)	37 L	9.8 gal
Hold-Up Volume (Membrane)	14 L	3.7 gal
Hold-Up Volume (Filtrate)	10 L	2.6 gal

XP 51 IG (formerly SFP-2660XP)

Basic Information

Parameter	Details
Part No / GMID	12091623
Filtration Mode	Out-In Pressurized
Membrane Type	Hollow Fiber
Membrane Material	PVDF (Polyvinylidene Fluoride)
Pore Size	~0.03 µm
Operation Process	Dead-end Filtration
Wetted Materials	Polyurethane, Polyethylene, Polyamide

Dimensions

Parameter	Metric	Imperial
Membrane Area	51 m²	549 ft²
Length (Overall, L)	1,860 mm ±3.0	73.2 in ±0.1
Length (L1)	1,500 mm ±3.0	59.1 in ±0.1
Length (L2)	1,630 mm ±3.0	64.2 in ±0.1
Length (L3)	1,820 mm ±3.0	71.7 in ±0.1
Diameter (D)	225 mm	8.9 in
Width (W1)	180 mm	7.1 in
Width (W2)	342 mm	13.5 in
Feed/Filtrate Port	DN50 (51 mm)	2.0 in

Weight & Volume

Parameter	Metric	Imperial
Shipping Weight	60 kg	132 lbs
Weight Empty	48 kg	106 lbs
Weight Filled	83 kg	183 lbs
Hold-Up Volume – Feed (CIP)	30 L	7.9 gal
Hold-Up Volume – Membrane (CIP)	9 L	2.4 gal
Hold-Up Volume – Filtrate (CIP)	8 L	2.1 gal

We go beyond ultrafiltration. As a total water treatment partner, we provide modular, scalable systems and expert design support for every stage of your water treatment process:

✅ Seawater Reverse Osmosis (SWRO) Systems
✅ Brackish Water Reverse Osmosis (BWRO) Systems
✅ Ultrafiltration (UF) Membranes – XP Series & More
✅ Electrodeionization (EDI) Equipment
✅ Media Pressure Filters
✅ Ion Exchanger Softeners

From pretreatment to polishing, we support engineering firms and EPCs with:

lFast lead times & global logistics

lDetailed design consultation

lTailored proposals for any scale project

Reach out today for specs, datasheets, or to request a custom quote!
