Product System

Professional Product Detail

600 GPD Skid-Mounted Reverse Osmosis (RO) System

Key SpecificationsTechnologyCapacityRecovery RateOperating PressureVoltageDimensionsTechnology Commercial Reverse Osmosis (RO) Design Skid-MountedCapacity 600 GPD (Expandable to 18,000 GPD) Rejection Rate

Category: Product System

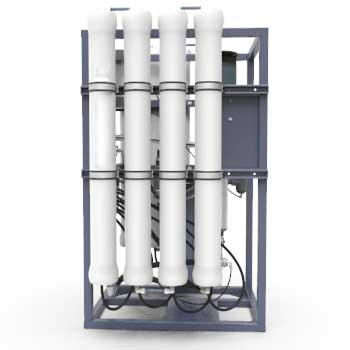

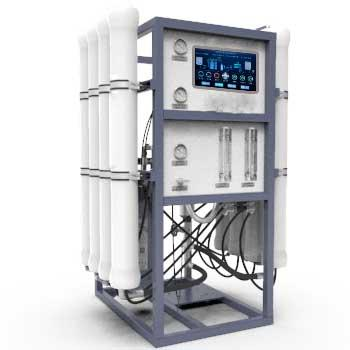

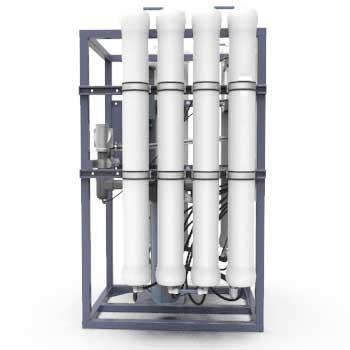

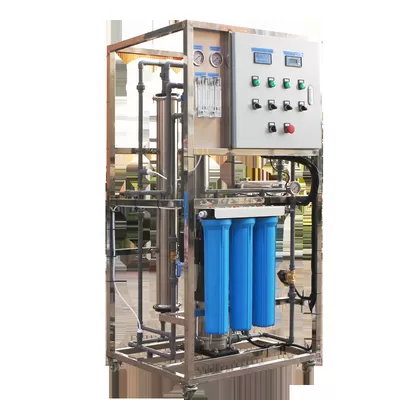

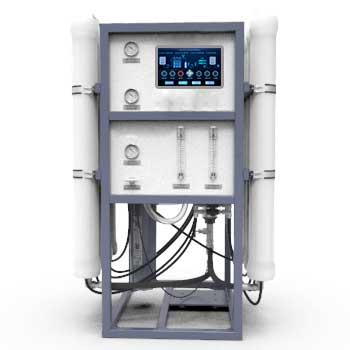

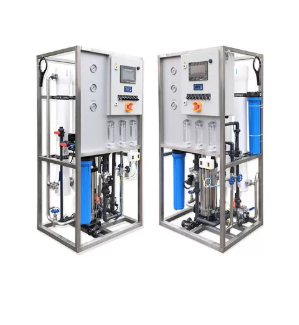

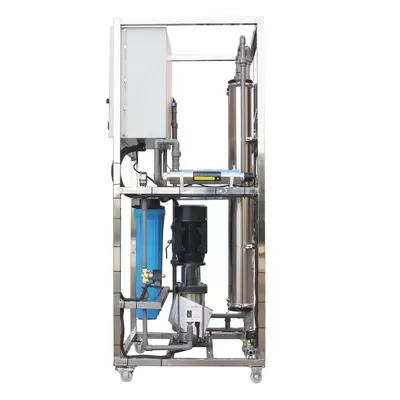

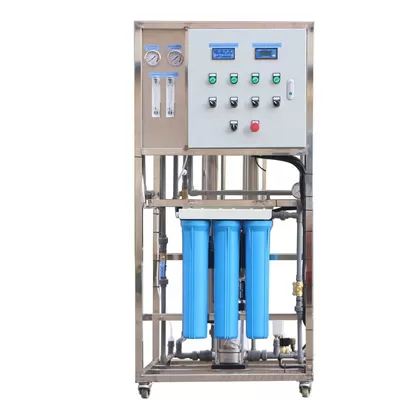

600 GPD Skid-Mounted Reverse Osmosis (RO) System

Key Specifications

TechnologyCommercial Reverse Osmosis (RO)DesignSkid-Mounted
Capacity 600 GPD (Expandable to 18,000 GPD)Rejection Rate99%~99.7%
Recovery Rate65%~75%Feed TDS≤2,000 ppm (Upgradable to 5,000 ppm)
Operating Pressure150~250 psipH Range4~9 (Tolerates 3~11)
Voltage220V/380V/415V (Customizable)MaterialSS304/SS316L/Carbon Steel
Dimensions53×61×140 cm (Standard, varies by model)Weight45 kg (600 GPD model)

Product Highlights

✔ Broad Compatibility: Ideal for food/beverage, pharmaceuticals, and potable water.

✔ Premium Components: DOW/Vontron RO membranes + CNP/Grundfos high-pressure pumps.

✔ Flexible Configuration: PLC/Manual control, optional auto-flush/softening pretreatment.

✔ Low Maintenance: Corrosion-resistant frame, FRP vessels, pre-labeled instrumentation.



Models & Technical Data

Model NumberPermeate Flow RateMembranesMotor Rating at 1,000 ppmApprox. WeightDimensions
GPDM3/DSizeQty.60Hz (hp)50Hz (hp)LBSKGL”xW”xH”LxWXH (cm)
ROS-112560022.5"x40"11/21/21004521x24x5553x61x140
ROS-21251,20052.5"x40"21/21/21105021x24x5553x61x140
ROS-31251,80072.5"x40"33/43/41255721x24x5553x61x140
ROS-11401,50064"x40"1111255721x25x5553x64x140
ROS-21403,000114"x40"2111607321x25x5553x64x140
ROS-31404,500174"x40"31.51.51908621x25x5553x64x140
ROS-41406,000234"x40"41.51.522010021x30x5553x76x140
ROS-51407,500284"x40"52225011421x30x5553x76x140
ROS-61409,000344"x40"62228012721x30x5553x76x140
ROS-814012,000454"x40"83338017327x34x5669x86x142
ROS-1014015,000574"x40”103345020527x34x5669x86x142
ROS-1214018,000684"x40”123350022727x40x5669x102x142



Voltage Codes:

116 = 115v, 1ph, 60hz (up to ROS-2140 only)

215 = 220/230v, 1ph, 50hz

216 = 220/230v, 1ph, 60hz

235 = 240v, 3ph, 50hz (ROS-3140+ Only)

236 = 240v, 3ph, 60hz (ROS-3140+ Only)

335 = 380v, 3ph, 50hz (ROS-3140+ Only)

435 = 400/415v, 3ph, 50hz (ROS-3140+ Only)

436 = 460v, 3ph, 60hz (ROS-3140+ Only)

Applications

Food & Beverage: Bottled water production, processing water

Medical/Electronics: Pharma-grade water, lab ultrapure water

Industrial: Plating rinse, boiler feed, cooling towers

Municipal: Safe drinking water, emergency relief



Certifications & Support

Certifications: CE, NSF compliant

Warranty: 1-year limited warranty

Customization: Softening, UV sterilization, DI polishers available



Ordering Info

MOQ: 1 unit

Price: Negotiable (configuration-dependent)

Lead Time: 15~30 days

Packaging: Export wooden crate/film wrapping

Payment: T/T, PayPal, Western Union



Why Choose Us?

10+ Years Expertise: Optimized fluid design extends membrane life, reduces fouling.

Global Voltage: Supports 115V~460V, 50/60Hz.

Rapid Response: 50 units/month capacity, OEM/ODM supported.

Contact us for a tailored solution today!



Optimization Notes:

Concise Structure: Modules for specs, models, and applications improve readability.

Visual Priority: Tabulated key data accelerates decision-making.

Action-Oriented: Checkmarks (✔) emphasize benefits; CTA drives engagement.

Technical Balance: Core specs highlighted; niche details (e.g., TSS) relegated to full datasheets.

For PLC/automation-focused clients, consider adding a dedicated "Smart Control" section.
