    Modular-R Series SWRO Equipment - Modular-R Series SWRO EquipmentHAFE R-Series are designed based on reverse osmosis principle, and for concept of rugged, ease of using and ease of maintenance.R-Series is for indoor use. It can be applied to hotels, restaurants and resorts; ships, cruises, yachts and fishing boats; island residents

    Modular-R Series SWRO Equipment

    HAFE R-Series are designed based on reverse osmosis principle, and for concept of rugged, ease of using and ease of maintenance.

    R-Series is for indoor use. It can be applied to hotels, restaurants and resorts; ships, cruises, yachts and fishing boats; island residents and civil constructions; high salinity brackish water desalination.
    The key features of HAFE R-series are:
    1) Compact design and small footprint. It can make full use of limited space and prevent from unexpected impact.
    2) Better Corrosion Resistance. All the wet parts are made of non-welding stainless steel 316L/UPVC, other parts are made of 304 or plastic.
    3) Fully Automatic operation. The automatic control panel enables one button start and stop.
    4) Simple Maintenance. All the key components are selected by proven of high quality and simple, easy and trouble free maintenance.
    5) Main components adopt international famous brand, life and performance will be guaranteed.

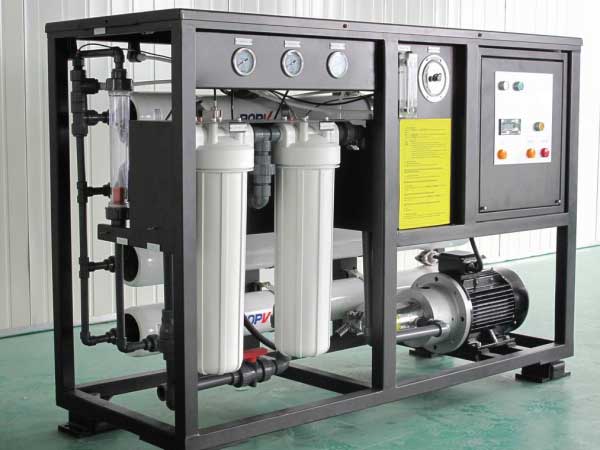

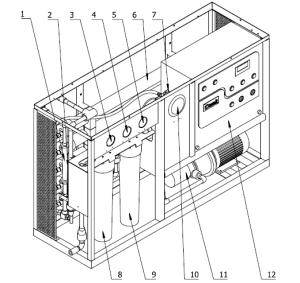

    1

    Brine flowmeter

    2

    Product flowmeter

    3

    Pre-filter In pressure gauge

    4

    Main-filter In pressure gauge

    5

    HP Pump In pressure gauge

    6

    Pressure vessels

    7

    UV

    8

    Pre-filter

    9

    Main-filter

    10

    High pressure gauge with electric contact

    11

    High pressure pump

    12

    Control Pannel

    Type


    R-6

    R-12

    R-18

    R-24

    R-48

    Code Number


    101A003

    101A004

    101A005

    101A006

    101A007

    Nominal Capacity*

    L/H

    250

    500

    750

    1000

    2000

    Normal Recovery Rate*

    %

    30

    30

    30

    30

    30

    Minimum Inlet Pressure

    bar

    2.5

    Maximum Inlet Pressure

    bar

    5

    Min. continuous System Pressure

    bar

    20

    Max. continuous System Pressure

    bar

    65

    Net Weight**

    kg

    150

    290

    340

    380

    650

    Feed Water

    TDS

    mg/L

    20,000-40,000

    Temperature

    °C

    5-45

    SDI15


    < 3

    Product Water

    Min. Salt Reduction Rate*

    %

    99

    Product Quality*

    μS/cm

    < 1000

    Power Requirements

    Installed Power

    kW

    2.2

    4

    5.5

    7.5

    15

    Power Input***


    1PH 220V±10%
    50Hz

    3PH 380V±10%
    50Hz

    * Design specifications: TDS: 35,000 ppm, Temperature: 15 °C, SDI < 3, further conditions according to specific water analysis; Higher capacity could be available by increasing the recovery rate, please contact QT if you need higher capacity.
    ** RO membrane, filter cartridge and water are not included.
    *** Other power input like 440V/60Hz, please contact us.


    Type

    R-6

    R-12

    R-18

    R-24

    R-48

    Code Number

    101A003

    101A004

    101A005

    101A006

    101A007

    Capacity


    6m3/d

    12m3/d

    18m3/d

    24m3/d

    48/d

    L*W*H

    mm

    1410*460*980

    1520*590*1010

    1520*760*1010

    1520*760*1010

    1700*800*1500

    Feed In (F)

    Rc 1/2”

    Rc 1”

    Rc 1”

    Rc 1”

    Rc 1 1/2”

    Flush/CIP In (C)

    Rc 1/2”

    Rc 1”

    Rc 1”

    Rc 1”

    Rc 1 1/2”

    Product Out (P)

    Rc 1/2”

    Rc 1/2”

    Rc 1/2”

    Rc 1/2”

    Rc 1”

    Brine Out (B)

    Rc 1/2”

    Rc 1/2”

    Rc 1”

    Rc 1”

    Rc 1 1/4”

    Pre-treatment-Sand Filter

    Type

    SF-20

    SF-40

    SF-60

    SF-80

    SF-160

    Code Number

    101B001

    101B002

    101B003

    101B004

    101B005

    L*W*H

    mm

    650*650*
    1830

    900*620*
    1880

    1250*750*
    1880

    1400*900*
    1880

    2500*1500*
    2000

    To RO
    Feed in (P)


    Rc1/2”

    Rc1"

    Rc1"

    Rc1"

    Rc1-1/2"

    Feed In (F)

    G1 - 1/4”

    G1 - 1/4”

    G1 - 1/4”

    G1 - 1/4”

    G1 - 1/2”

    Discharge (D)

    Rc1”

    Rc1

    Rc1

    Rc1

    Rc1-1/2"

    Cartridge number

    1

    2

    Matching Unit

    R-6

    R-12

    R-18

    R-24

    R-48

    CIP Unit


    Type

    CIP-1

    CIP-2

    CIP-3

    Code Number

    101C001

    101C002

    101C003

    L*W*H

    mm

    600*450*640

    750*550*660

    750*550*660

    RO product water in (F)


    Rc1/2”

    Rc1""


    To RO flush/CIP in (C)

    Rc1/2”

    Rc1""

    Rc1""

    Discharge (D)

    Rc1/2”

    Rc1""

    Rc1""

    Matching Unit

    R-6

    R-12, R18, R-24

    R-48
