    Ultrafiltration System

    Industrial Ultrafiltration (UF) Membranes Systems - Industrial Ultrafiltration (UF) Membranes SystemsUltrafiltration is a pressure-driven membrane separation process that removes suspended or particulate matter (including colloids & silt) from water. Ultrafiltration is more reliable than conventional multimedia filtration that removes particles o

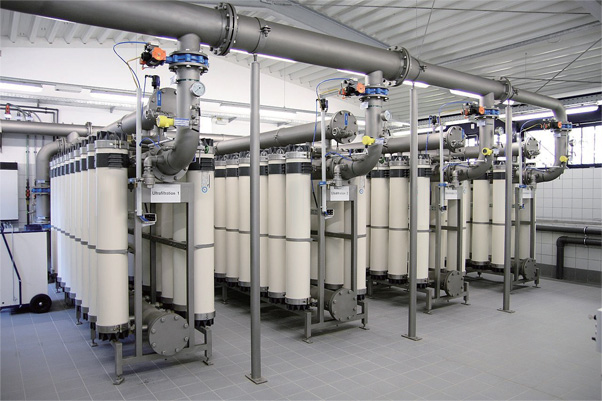

    Industrial Ultrafiltration (UF) Membranes Systems

    Ultrafiltration is a pressure-driven membrane separation process that removes suspended or particulate matter (including colloids & silt) from water. Ultrafiltration is more reliable than conventional multimedia filtration that removes particles of 10 microns in size or larger. Ultrafiltration also efficiently removes bacteria and most viruses.

    Ultrafiltration systems eliminate the need for clarifiers and multimedia filters. Standard design is based on a UF module with outside-in flow configuration which allows for less plugging, higher solids loading, higher flow area and easy cleaning. Pure Aqua supplies a full line of standard and fully customizable Ultrafiltration systems, all of which are engineered using advanced 3D computer modeling and process design software.

    • UF Membrane Parameter

    • membrane material :

      PVDF(聚偏氟乙烯)

      permeate turbidity(NTU)

      <0.5

      membrane structure

      Hollow fiber membrane

      single unit area(m2)

      60

      inner/outer diameter (mm)

      0.5/1.1

      applicable to

      contaminant water, clean water
      and process fluid

      inner membrane appearance/color

      color

      module length(mm)

      1690

      single unit output(m3/h)

      1.8-4.5

      module diameter(mm)

      225

      module weight(kg)

      approximate 36.6

      operation method

      every 15-120min to backwash

      water output diameter(mm)

      DN40/DN32

      maintenance chemicals

      NaClO/HCl

      ambient temperature(℃)

      5-45

      chemical cleaning period

      20-60 days

      output power

      presure driven

      chemical cleaning agent

      HCl/NaClO+NaOH

      working pressure range(MPa)

      ≤0.15

      life endurance

      3-5 years

    • Product Water Parameter

    • Parameter参数

      Value指标

      Turbidity (NTU)        产水浊度(NTU)

      ≤0.1

      SS removal rate (100ml)     悬浮物去除率(100ml)

      99.99%

      Coliform (100ml)          大肠杆菌群

      不得检出

      SDI                     污泥密度指数

      <3

    SPECIFICATION

    Model No.

    Capacity - Surface Water
    Flux at 25 GFD

    Capacity - Sea Water
    Flux at 35 GFD

    Capacity - Ground Water
    Flux at 53 GFD

    Qty of
    UF Modules

    GPD

    M3/ Day

    GPD

    M3/ Day

    GPD

    M3/ Day

    UF-10K-1

    10080

    38

    15840

    60

    25920

    98

    1

    UF-20K-2

    20160

    76

    30956

    117

    50655

    192

    2

    UF-40K-4

    40320

    153

    63541

    241

    103976

    394

    4

    UF-60K-6

    60480

    229

    94497

    358

    154631

    586

    6

    UF-80K-8

    80640

    305

    127082

    481

    207952

    788

    8

    UF-100K-10

    100800

    382

    158038

    599

    258608

    980

    10

    UF-120K-12

    120960

    458

    190623

    722

    311929

    1,182

    12

    UF-161K-16

    161280

    611

    254164

    963

    415905

    1,575

    16

    UF-201K-20

    201600

    764

    316076

    1,197

    517215

    1,959

    20

    UF-262K-26

    262080

    993

    412202

    1,561

    674512

    2,555

    26

    UF-302K-30

    302400

    1,145

    475743

    1,802

    778489

    2,949

    30

    UF-403K-40

    403200

    1,527

    633781

    2,401

    1037096

    3,928

    40
