FENIGAL - UV Sterilizer Equipment

FEATURES●Features running timer with digital display and audible lamp change reminder for ease of maintenance●Reliable High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life●Controller will go into alarm if the lamp fails●UV chamber with great welding

Category: Product System

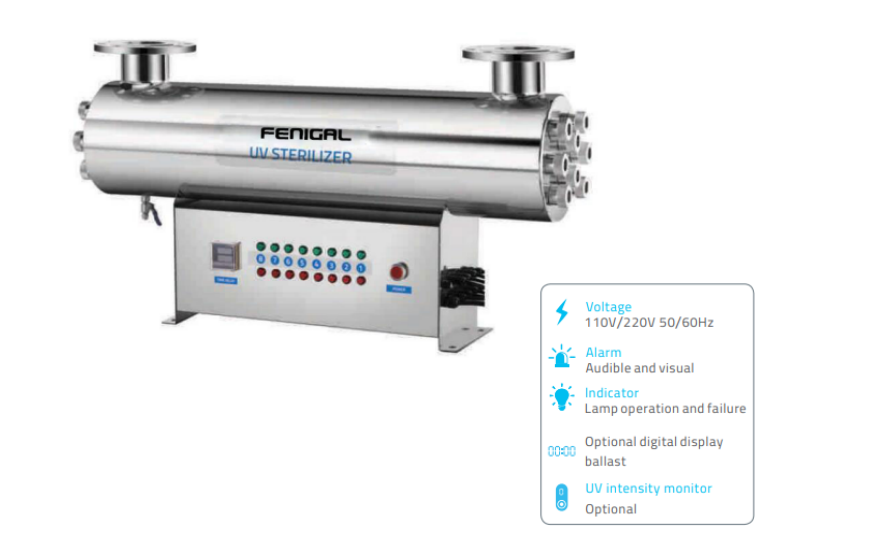

FENIGAL - UV Sterilizer Equipment

FEATURES

●Features running timer with digital display and audible lamp change reminder for ease of maintenance

●Reliable High-performance UV lamp, rigorously tested to provide consistent output over the entire lamp life

●Controller will go into alarm if the lamp fails

●UV chamber with great welding process which enables to pass 1.O4MPa 100,000 times water hammer test



WATER QUALITY REQUIREMENT

●Maximum operating pressure 0.8MPa(116psi)

●Ambient water temperature 2-40°C(36-104°F)

●lron<0.3ppm(0.3mg/L)

●Hardness<7gpg(120mg/L)

●Turbidity<1NTU

●UV transmittance>75%

●UV dose≥30mJ/cm2


* Chamber material:304 SS(316L is optional); Thread or flange as options; Philips uv lamp is optional

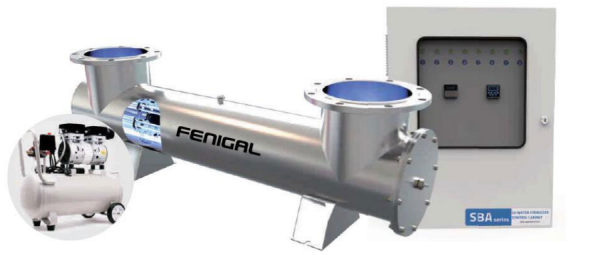

FENIGAL - UV Sterilizer Equipment




PRODUCT FEATURES:

●Incorporates an automatic self-cleaning mechanism which is pneumatically driven that prevents the quartz from fouling without requiring harsh chemical cleaning like other conventional systems.

●UV monitoring: high-precision UV intensity sensor, real-time detection of the operation status of the UV lamp in the chamber.

●Customized high transmittance quartz tube over 90% at 253.7nm to protect UV lamp and guarantee the disinfection performance.

●The compressed air drives the wiper inside to clean the quartz tube automatically according to the cleaning time we set up while without disrupting disinfection work.


*Chamber material:304 SS(316Lis optional); 4s pins or 4 pins Light sources UV lamp as options
