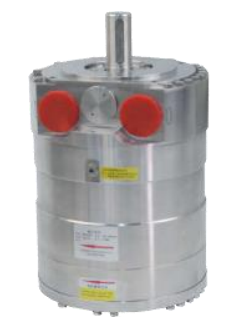

FG Water AXP 24–46 Axial Piston Pumps – High-Flow Pumps for Desalination and Wastewater Concentration
1. Product OverviewThe FG Water AXP 24–46 range is designed for higher-flow membrane-feed duties in desalination and industrial wastewater concentration systems.The range includes AXP 24, AXP 26, AXP 30, AXP 38, and AXP 46. These liquid-lubricated, fixed-displacement pumps allow flow adjustment thr
1. Product Overview
The FG Water AXP 24–46 range is designed for higher-flow membrane-feed duties in desalination and industrial wastewater concentration systems.
The range includes AXP 24, AXP 26, AXP 30, AXP 38, and AXP 46. These liquid-lubricated, fixed-displacement pumps allow flow adjustment through shaft-speed control.
Maximum continuous outlet pressure is 80 bar for AXP 24–38 and 70 bar for AXP 46. Model selection must account for both flow and pressure requirements.
2. PRODUCT SPECIFICATIONS

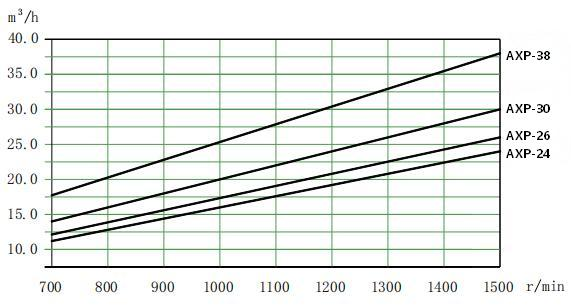

| Model | Catalogue Flow at 1,500 rpm | Geometric Displacement | Pump Weight |
|---|---|---|---|
| AXP 24 | 24.5 m³/h | 282 cm³/rev | 105 kg |
| AXP 26 | 26.7 m³/h | 309 cm³/rev | 105 kg |
| AXP 30 | 31.6 m³/h | 362 cm³/rev | 105 kg |
| AXP 38 | 39.3 m³/h | 444 cm³/rev | 105 kg |
| AXP 46 | 39.4 m³/h | 444 cm³/rev | 105 kg |
AXP 46 flow note: The catalogue also lists 46.4 m³/h at 1,780 rpm in its motor selection table. Confirm the required duty point against the model-specific curve.
| Common Specification | Details |
|---|---|

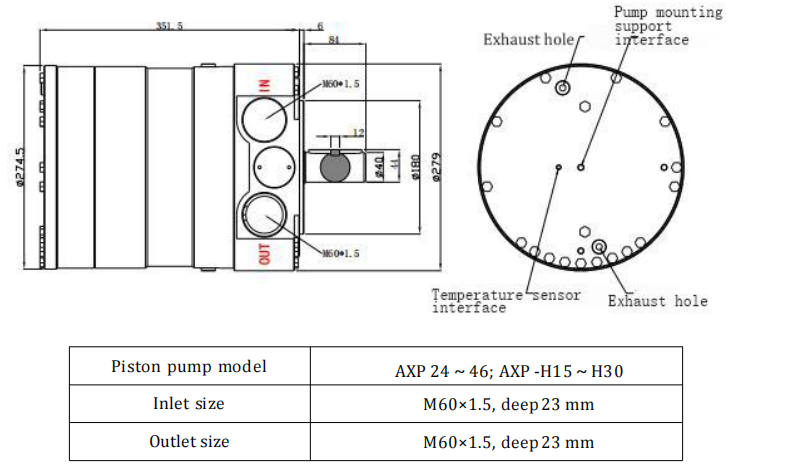

| Inlet Connection | M60 × 1.5 |
| Outlet Connection | M60 × 1.5 |
| Integrated Flushing Check Valve | Included |

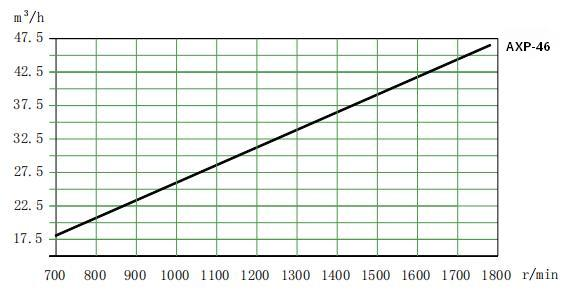

AXP46 flow curve at 70bar
3. OPERATING PARAMETERS
| Parameter | AXP 24–38 | AXP 46 |
|---|---|---|
| Outlet Pressure Range | 10–80 bar | 10–70 bar |
| Inlet Pressure Range | 2–5 bar | 3–5 bar |
| Continuous Speed Range | 700–1,500 rpm | 700–1,780 rpm |
| Fluid Temperature | 2–50°C* | 2–50°C* |
| Ambient Temperature | 0–50°C | 0–50°C |
Permissible fluid temperature depends on salinity and material compatibility.
Select the motor and pressure-rated accessories for the actual duty point. Provide suitable inlet filtration, pressure relief, and low-pressure protection.
Fresh-water flushing is recommended when shutting down after high-salinity operation.
4. Key Features & Benefits
Higher-flow model range: Supports industrial membrane-feed requirements.
Model-specific pressure selection: Allows matching of flow and continuous pressure.
Liquid lubrication: No lubricating oil reservoir is required.
Speed-based flow adjustment: Supports different operating duties.
Integrated flushing check valve: Facilitates fresh-water flushing.

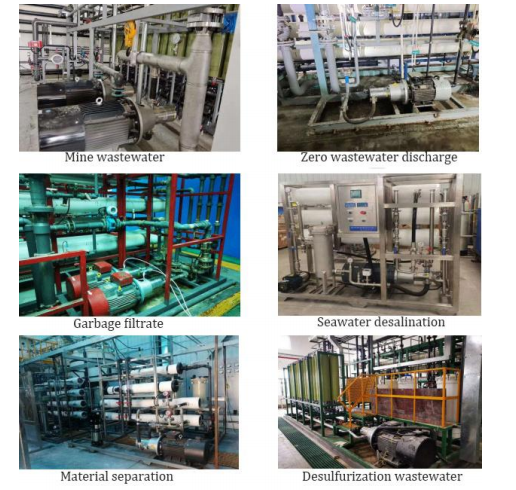

5. Key Applications
Industrial seawater desalination.
High-salinity wastewater concentration.
Brine volume reduction.
Membrane concentration ahead of ZLD systems.
Industrial water resource recovery.
