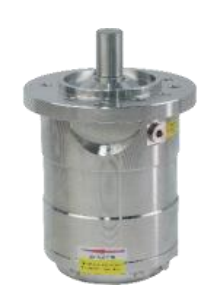

Axial Plunger High Pressure Pump
FG Water APC 50–100 Axial Piston Pumps – 72–138 L/min at 1,500 rpm for Industrial Clean-Water Systems
1. Product OverviewThe FG Water APC 50–100 range provides higher-flow clean-water delivery for industrial cleaning, spraying, and process-water systems.The Chapter 3 technical table lists APC50, APC63, APC70, APC80, and APC100, with flows from 72 to 138 L/min at 1,500 rpm.Maximum continuous outlet
1. Product Overview
The FG Water APC 50–100 range provides higher-flow clean-water delivery for industrial cleaning, spraying, and process-water systems.

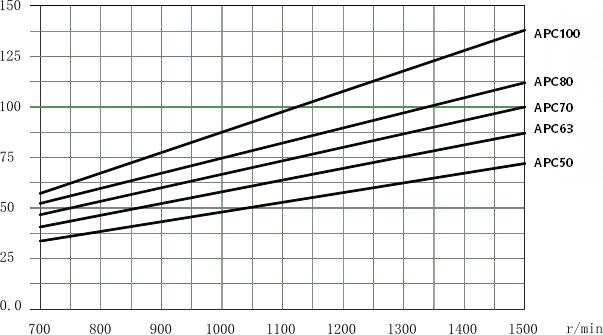

The Chapter 3 technical table lists APC50, APC63, APC70, APC80, and APC100, with flows from 72 to 138 L/min at 1,500 rpm.
Maximum continuous outlet pressure is 160 bar for APC50–80 and 80 bar for APC100.
2. PRODUCT SPECIFICATIONS
| Model | Geometric Displacement | Flow at 1,500 rpm | Equivalent Flow | Pump Weight |
|---|---|---|---|---|
| APC50 | 50 cm³/rev | 72 L/min | 4.32 m³/h | 31 kg |
| APC63 | 63 cm³/rev | 87 L/min | 5.22 m³/h | 31 kg |
| APC70 | 70 cm³/rev | 100 L/min | 6.00 m³/h | 31 kg |
| APC80 | 80 cm³/rev | 112 L/min | 6.72 m³/h | 31 kg |
| APC100 | 100 cm³/rev | 138 L/min | 8.28 m³/h | 31 kg |

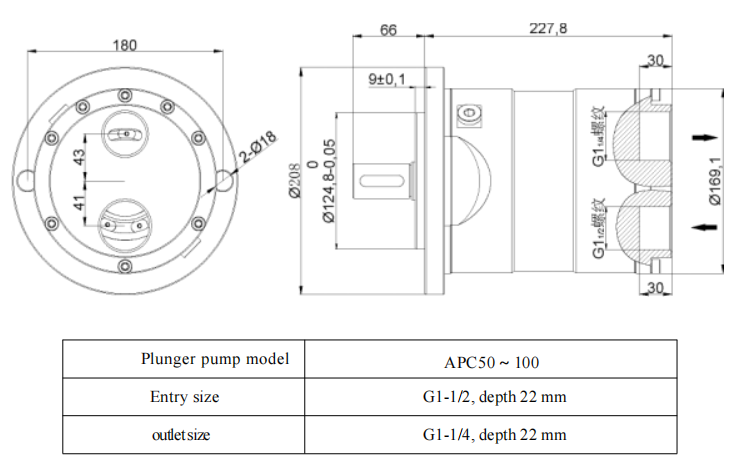

| Common Specification | Details |
|---|---|
| Inlet Connection | G1½″ |
| Outlet Connection | G1¼″ |
| Lubrication | Pumped water |
3. OPERATING PARAMETERS
| Parameter | APC50 / APC63 / APC70 / APC80 | APC100 |
|---|---|---|
| Outlet Pressure Range | 20–160 bar | 20–80 bar |
| Inlet Pressure Range | 3–6 bar | 3–6 bar |
| Continuous Speed Range | 700–1,800 rpm | 700–1,800 rpm |
| Fluid Temperature | 2–50°C | 2–50°C |
| Ambient Temperature | 0–50°C | 0–50°C |
Select the motor and pressure-rated accessories for the required flow and pressure. Maintain adequate inlet pressure, provide suitable filtration, and prevent dry running.
4. Key Features & Benefits
Industrial flow capacity: Supports clean-water duties up to 138 L/min at the stated reference speed.
Oil-free lubrication: Eliminates lubricating oil handling.
Variable-speed operation: Supports flow adjustment within model limits.
Compact axial piston design: Facilitates integration into industrial equipment.

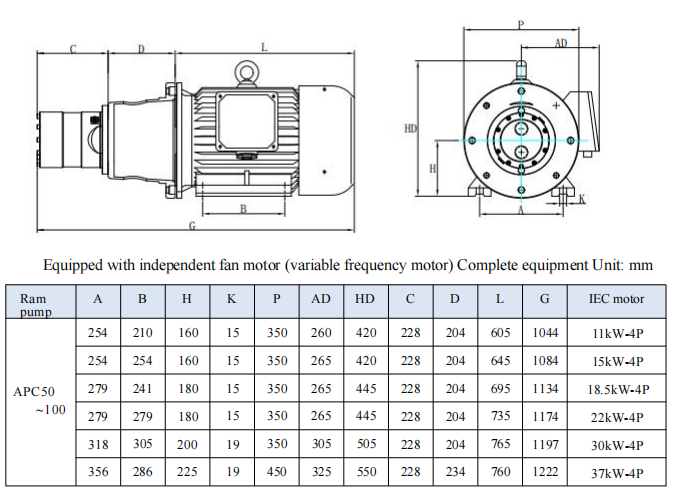

Flexible supply: Pump heads and motor-pump assemblies can be configured for the project.

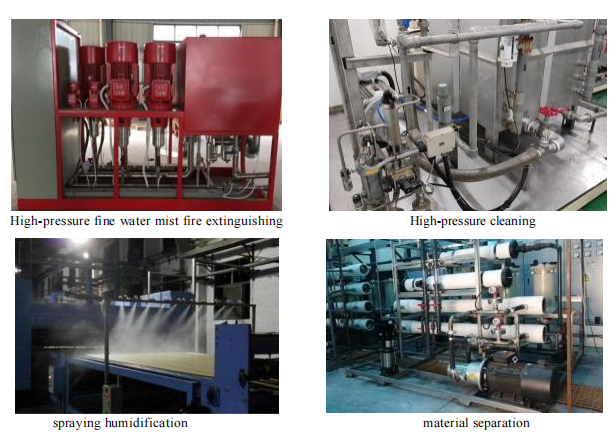

5. Key Applications
Industrial washing systems.
Production-line cleaning.
High-pressure spray and dust suppression.
Pure-water process supply.
Water-hydraulic pressurization.
