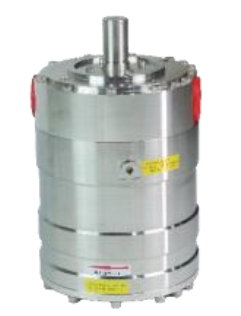

Axial Plunger High Pressure Pump
FG Water APC 116–181 Axial Piston Pumps – 160–250 L/min at 1,500 rpm, up to 160 Bar
1. Product OverviewThe FG Water APC 116–181 range comprises industrial axial piston pumps for high-pressure delivery of clean, non-corrosive water.The detailed technical table includes APC116, APC133, APC163, and APC181, with flows from 160 to 250 L/min at 1,500 rpm.All four models have a maximum c
1. Product Overview
The FG Water APC 116–181 range comprises industrial axial piston pumps for high-pressure delivery of clean, non-corrosive water.
The detailed technical table includes APC116, APC133, APC163, and APC181, with flows from 160 to 250 L/min at 1,500 rpm.
All four models have a maximum continuous outlet pressure of 160 bar and use the pumped water for lubrication.
2. PRODUCT SPECIFICATIONS
| Parameter | APC116 | APC133 | APC163 | APC181 |
|---|---|---|---|---|
| Geometric Displacement | 116 cm³/rev | 133 cm³/rev | 163 cm³/rev | 181 cm³/rev |

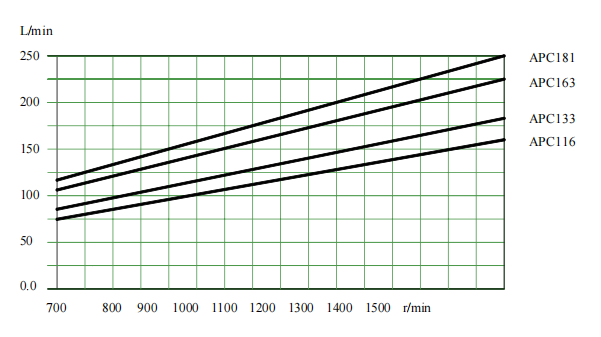

| Flow at 1,500 rpm | 160 L/min | 183 L/min | 225 L/min | 250 L/min |
| Equivalent Flow | 9.60 m³/h | 10.98 m³/h | 13.50 m³/h | 15.00 m³/h |
| Pump Weight | 52 kg | 52 kg | 52 kg | 52 kg |

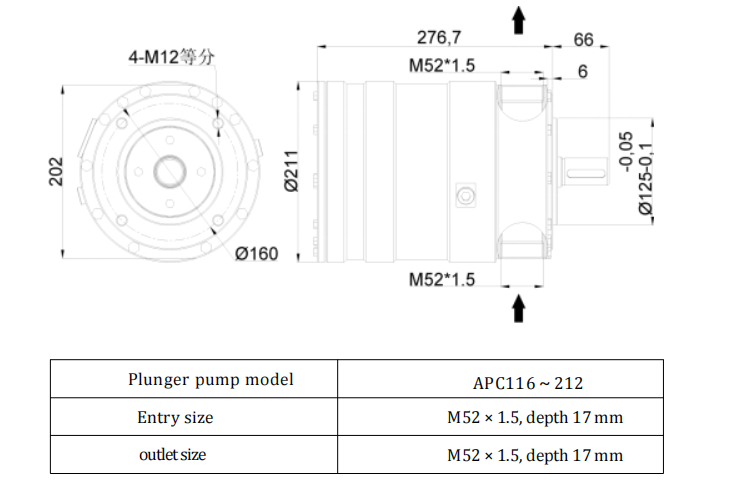

The dimensional section lists M52 × 1.5 inlet and outlet connections. Confirm the model-specific drawing before installation.
3. OPERATING PARAMETERS
| Parameter | Specification |
|---|---|
| Outlet Pressure Range | 20–160 bar |
| Inlet Pressure Range | 3–6 bar |
| Continuous Speed Range | 700–1,500 rpm |
| Fluid Temperature | 2–50°C |
| Ambient Temperature | 0–50°C |
| Lubrication | Pumped water |
Motor selection must reflect the actual flow and pressure requirement. Do not exceed the maximum continuous shaft speed.
Use suitable filtration, maintain adequate feed pressure, and provide pressure relief. Prevent dry running.
4. Key Features & Benefits
High-pressure capability: Continuous outlet pressure up to 160 bar.
Four industrial flow options: Supports different clean-water delivery duties.
Water lubrication: Eliminates routine lubricating oil changes.
Adjustable flow: Shaft-speed control supports system matching.

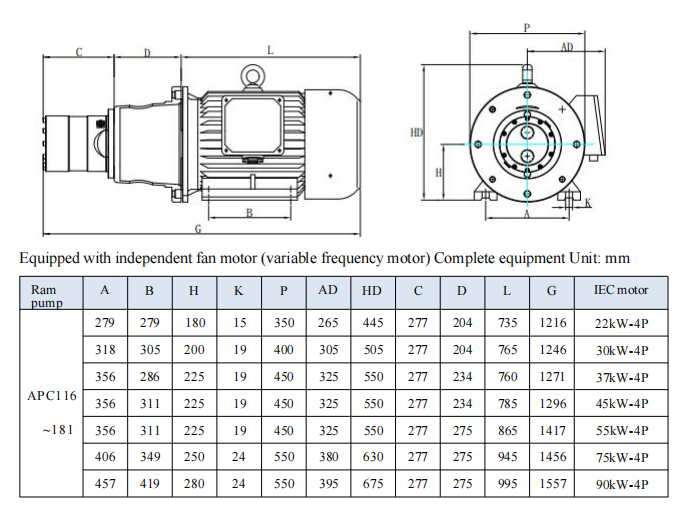

Configured drive options: Motor-pump assemblies can be selected for the installation.
5. Key Applications
Industrial high-pressure cleaning.
Pure-water boosting and distribution.
High-flow spray systems.
Water-hydraulic power equipment.
Process-water pressurization and testing.
