Axial Plunger High Pressure Pump
FG Water APC 10–20 Axial Piston Pumps – Oil-Free Clean-Water Pumps with Model-Specific Pressure Ratings up to 160 Bar
1. Product OverviewThe FG Water APC 10–20 range provides high-pressure delivery of clean, non-corrosive water for industrial cleaning, spraying, and process-water applications.The range includes APC10, APC12, APC15, and APC20. Pump flow varies with shaft speed, while allowable continuous pressure d
1. Product Overview
The FG Water APC 10–20 range provides high-pressure delivery of clean, non-corrosive water for industrial cleaning, spraying, and process-water applications.

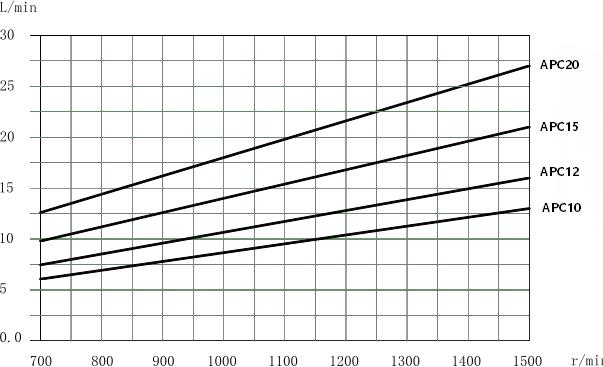

The range includes APC10, APC12, APC15, and APC20. Pump flow varies with shaft speed, while allowable continuous pressure depends on the model and selected speed configuration.
Water lubrication eliminates the need for a separate lubricating oil system.
2. PRODUCT SPECIFICATIONS
| Parameter | APC10 | APC12 | APC15 | APC20 |
|---|---|---|---|---|
| Geometric Displacement | 10 cm³/rev | 12 cm³/rev | 15 cm³/rev | 20 cm³/rev |
| Flow at 1,500 rpm | 13 L/min | 16 L/min | 21 L/min | Not listed |
| Flow at 3,000 rpm | 26 L/min | 32 L/min | 42 L/min | 52 L/min |
| Pump Weight | 6.9 kg | 6.9 kg | 6.9 kg | 6.9 kg |

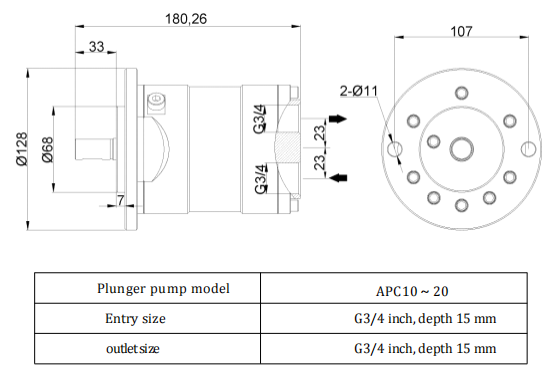

| Inlet Connection | G¾″ | G¾″ | G¾″ | G¾″ |
| Outlet Connection | G¾″ | G¾″ | G¾″ | G¾″ |
3. OPERATING PARAMETERS
| Parameter | APC10 / APC12 / APC15 | APC20 |
|---|---|---|
| Minimum Outlet Pressure | 20 bar | 20 bar |
| Maximum Continuous Outlet Pressure — Lower-Speed Configuration | 160 bar | Not listed |
| Maximum Continuous Outlet Pressure — 3,000 rpm Configuration | 100 bar | 80 bar |
| Continuous Speed — Lower-Speed Configuration | 700–1,800 rpm | Not listed |
| Continuous Speed — High-Speed Configuration | 1,000–3,000 rpm | 1,000–3,000 rpm |
| Inlet Pressure | 2–5 bar | 2–5 bar |
| Fluid Temperature | 2–50°C | 2–50°C |
| Ambient Temperature | 0–50°C | 0–50°C |
The 160 bar rating must not be applied to the 3,000 rpm configuration. Confirm the required operating point and drive arrangement before selection.
Provide suitable filtration, low-pressure protection, and pressure relief. Prevent dry running.
4. Key Features & Benefits
Multiple model options: Supports different clean-water delivery requirements.
Configuration-specific pressure capability: Enables selection for higher pressure or higher flow.
Oil-free lubrication: Uses the pumped water to lubricate moving components.
Adjustable flow: Supports regulation through approved shaft-speed control.
Compact pump head: A 6.9 kg weight facilitates equipment integration.

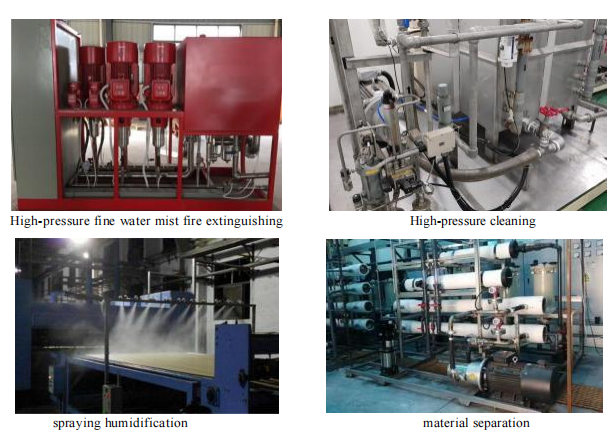

5. Key Applications
Industrial high-pressure cleaning.
Spray and atomization equipment.
Process-water pressurization.
Pure-water transfer and boosting.
Water-hydraulic test equipment.
