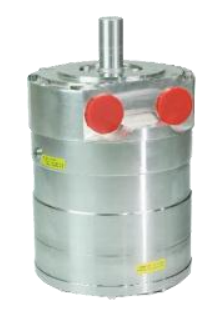

Axial Plunger High Pressure Pump
FG Water APC 285–452 Axial Piston Pumps – 325–525 L/min at 1,250 rpm for High-Flow Water Pressurization
1. Product OverviewThe FG Water APC 285–452 range is designed for higher-flow industrial clean-water pressurization.The range includes APC285, APC308, APC354, and APC452, with catalogue flows of 325–525 L/min at 1,250 rpm.Maximum continuous outlet pressure is 120 bar for APC285, APC308, and APC354
1. Product Overview
The FG Water APC 285–452 range is designed for higher-flow industrial clean-water pressurization.
The range includes APC285, APC308, APC354, and APC452, with catalogue flows of 325–525 L/min at 1,250 rpm.
Maximum continuous outlet pressure is 120 bar for APC285, APC308, and APC354, and 80 bar for APC452. The pumps use water lubrication and a fixed-displacement axial piston design.
2. PRODUCT SPECIFICATIONS
| Parameter | APC285 | APC308 | APC354 | APC452 |
|---|---|---|---|---|
| Catalogue Geometric Displacement | 260 cm³/rev | 280 cm³/rev | 320 cm³/rev | 420 cm³/rev |

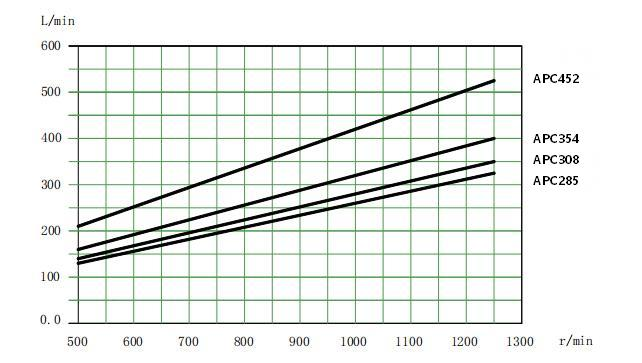

| Flow at 1,250 rpm | 325 L/min | 350 L/min | 400 L/min | 525 L/min |
| Equivalent Flow | 19.50 m³/h | 21.00 m³/h | 24.00 m³/h | 31.50 m³/h |
| Pump Weight | 105 kg | 105 kg | 105 kg | 105 kg |

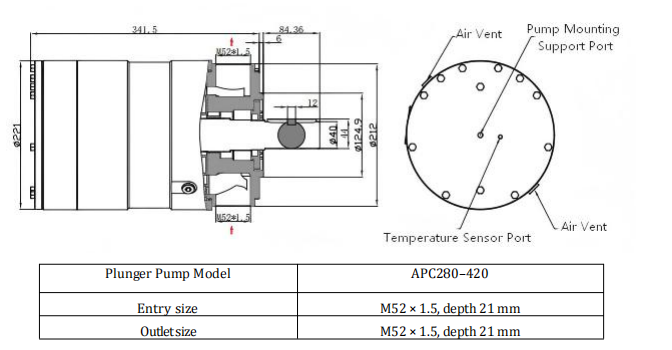

Refer to the confirmed model-specific drawing for connection sizes and mounting dimensions.
3. OPERATING PARAMETERS
| Parameter | APC285 / APC308 / APC354 | APC452 |
|---|---|---|
| Outlet Pressure Range | 20–120 bar | 20–80 bar |
| Inlet Pressure Range | 3–6 bar | 3–6 bar |
| Continuous Speed Range | 500–1,250 rpm | 500–1,250 rpm |
| Fluid Temperature | 2–50°C | 2–50°C |
| Ambient Temperature | 0–50°C | 0–50°C |
Operating values above follow the Chapter 3 technical table. Confirm the final duty point and drive configuration before ordering.
Provide suitable inlet filtration, adequate feed pressure, low-pressure protection, and pressure relief. Prevent dry running.
4. Key Features & Benefits
High-flow delivery: Catalogue flows up to 525 L/min.
Model-specific pressure capability: Supports selection for different industrial duties.
Oil-free lubrication: Uses pumped water to lubricate internal components.
Adjustable operating flow: Supports shaft-speed regulation within the approved range.

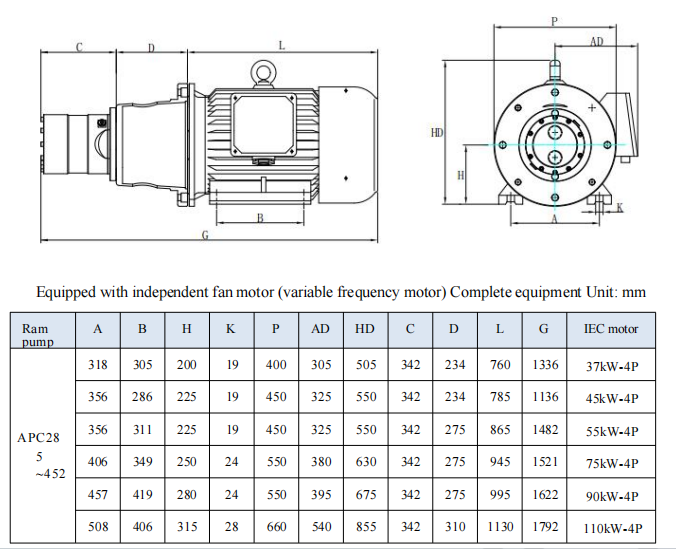

Industrial integration: Suitable for configured motor-pump and baseplate assemblies.
5. Key Applications
High-flow industrial washing.
Clean process-water pressurization.
Water-hydraulic power systems.
Industrial flushing and pressure-test equipment.
High-purity water boosting, subject to material and cleanliness requirements.
