Axial Plunger High Pressure Pump
FG Water APC-T20–32 Axial Piston Pumps – 27–44 L/min for High-Pressure Clean-Water Systems, up to 160 Bar
1. Product OverviewThe FG Water APC-T20–32 range comprises water-lubricated axial piston pumps for industrial high-pressure clean-water applications.The detailed technical table includes APC-T20, APC-T25, and APC-T32, with listed flows of 27, 33, and 44 L/min, respectively.All three models support
1. Product Overview
The FG Water APC-T20–32 range comprises water-lubricated axial piston pumps for industrial high-pressure clean-water applications.
The detailed technical table includes APC-T20, APC-T25, and APC-T32, with listed flows of 27, 33, and 44 L/min, respectively.
All three models support maximum continuous outlet pressure of 160 bar. Flow adjustment is achieved through shaft-speed control within the approved operating range.
2. PRODUCT SPECIFICATIONS
| Parameter | APC-T20 | APC-T25 | APC-T32 |
|---|---|---|---|
| Geometric Displacement | 20 cm³/rev | 25 cm³/rev | 32 cm³/rev |
| Catalogue Listed Flow | 27 L/min | 33 L/min | 44 L/min |
| Equivalent Flow | 1.62 m³/h | 1.98 m³/h | 2.64 m³/h |
| Pump Weight | 16 kg | 16 kg | 16 kg |

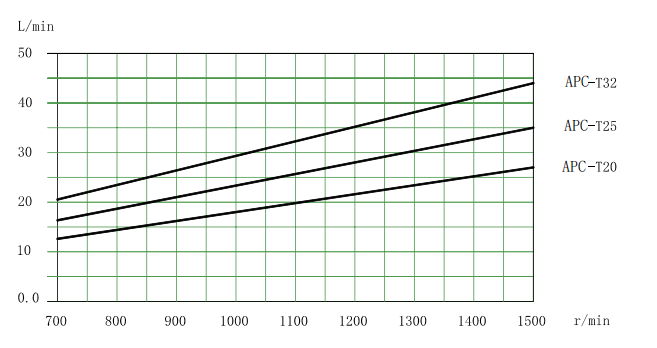

Flow note: Confirm the reference speed against the approved performance curve before final selection.
3. OPERATING PARAMETERS
| Parameter | Specification |
|---|---|
| Outlet Pressure Range | 30–160 bar |
| Inlet Pressure Range | 3–6 bar |
| Continuous Speed Range | 700–1,800 rpm |
| Fluid Temperature | 2–50°C |
| Ambient Temperature | 0–50°C |
| Lubrication | Pumped water |

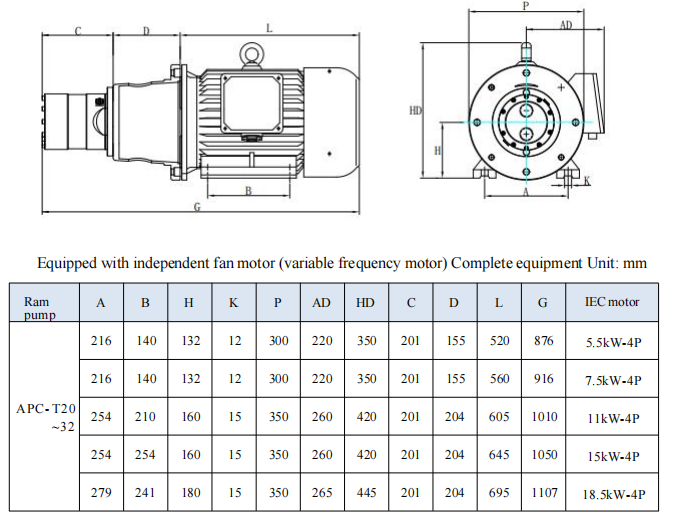

Use compatible clean, non-corrosive water. Select the motor and accessories against the confirmed operating flow and pressure.
Provide suitable filtration and pressure protection. Maintain adequate inlet pressure and prevent dry running.
4. Key Features & Benefits
160 bar continuous pressure capability: Supports demanding clean-water duties.
Three flow options: Enables selection for different industrial requirements.
Water lubrication: Eliminates the need for lubricating oil.
Speed-controlled flow: Supports operating-duty adjustment.
Compact construction: A 16 kg pump head supports equipment integration.
5. Key Applications
High-pressure industrial cleaning.
Fine-water-mist systems, subject to system design and approval requirements.
Spray humidification.
Clean-water pressurization.
Compatible material separation processes.
