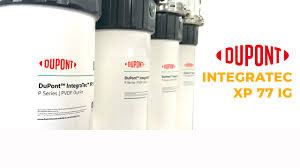

DuPont IntegraTec XP 77 IP Ultrafiltration Module: High-Efficiency Water Treatment Solution
DuPont IntegraTec XP 77 IP Ultrafiltration Module: High-Efficiency Water TreatmentProduct Overview:The DuPont IntegraTec XP 77 IP Ultrafiltration Module is a state-of-the-art high-performance filtration solution designed for advanced water treatment systems. With its cutting-edge technology and robu
DuPont IntegraTec XP 77 IP Ultrafiltration Module: High-Efficiency Water Treatment
Product Overview:
The DuPont IntegraTec XP 77 IP Ultrafiltration Module is a state-of-the-art high-performance filtration solution designed for advanced water treatment systems. With its cutting-edge technology and robust features, this ultrafiltration (UF) module is ideal for a variety of applications, including zero-liquid discharge (ZLD) systems, reverse osmosis (RO) pretreatment, and more. It offers superior filtration, extended durability, and energy efficiency, making it a trusted choice for industrial-scale water treatment.
Key Features:
High-Efficiency Membrane: The 77m² PVDF membrane delivers 30% higher throughput than traditional UF modules.
Enhanced Polymer Matrix: Patented nano-structured PVDF fibers are designed to withstand extreme pH conditions (1-13) and exposure to chlorine up to 500,000 ppm·h.
Optimized Flow Channels: Pre-engineered flow channels ensure an operating pressure of less than 0.25 bar TMP at 85 LMH flux.
Energy Efficiency: Consumes 25% less energy compared to conventional ultrafiltration systems, making it an environmentally friendly choice.
Durable and Long-lasting: With proper maintenance, it offers a 5-year warranty and ensures long-term reliability.
Easy Maintenance: 360° access ports make cleaning and maintenance straightforward.
Proven Performance: Successfully implemented in BASF's zero-liquid discharge system, processing 800m³/day of high-TDS wastewater with 90% stable recovery.
Product Specifications:
| Specification | Details |
|---|---|
| Brand | DuPont Ultrafiltration |
| Model | IntegraTec XP 77 IP Ultrafiltration Module |
| Type | Hollow Fiber |
| Pore Size (μm) | 0.03 |
| Max Temperature (°C) | 41 |
| Max Temperature (°F) | 104 |
| Membrane Active Area (ft²) | 829 |
| Membrane Active Area (m²) | 77 |
| Flow (gpm) | 37.4 |
| pH Range | 2-11 |
| Particle Size (μm) | 300 |
Operating Parameters:
| Operating Range | Details |
|---|---|
| Filtrate Flux @ 25°C | 40-110 l/m²/hr (24-65 gfd) |
| Flow Range | 2.0 - 8.5 m³/hr (8.8 - 37.4 gpm) |
| Temperature Range | 1-40°C (34-104°F) |
| Max Inlet Pressure @ 20°C | 6.25 bar (90.65 psi) |
| Max Operating TMP | 2.1 bar (30.5 psi) |
| Max Air Scour Flow | 12 nm³/hr (7.1 scfm) |
| Max Backwash Pressure | 2.5 bar (36 psi) |
| Operating pH | 2-11 |
| Max NaOCl Concentration | 2,000 mg/L |
| Max Particle Size | 300 µm |
| Flow Configuration | Outside-in, dead-end flow |
| Expected Filtrate Turbidity | ≤0.1 NTU |
| Expected Filtrate SDI | ≤2.5 |
Applications:
Heavy Wastewater Treatment: Mining, oil & gas industries.
Seawater Desalination Pretreatment.
High-Purity Process Water Production.
Chemical Processing Effluent Recovery
Why Choose DuPont IntegraTec XP 77 IP Ultrafiltration Module?
High Performance: The largest filtration area in its class provides 30% higher throughput compared to conventional modules.
Advanced Technology: The XP Series enhanced polymer matrix and intelligent design optimize filtration performance while reducing energy consumption by 25%.
Proven Reliability: Successful use in large-scale industrial applications, ensuring long-term performance with low maintenance.
NSF Certified: Ensures high-quality, safe, and reliable water treatment results.
For more detailed information about our products, visit our Industries Page.
Product Dimensions & Weight:
| Property | Dimensions/Weight |
|---|---|
| Length (inches) | 92.9 |
| Length (mm) | 2360 |
| Weight (kg) | 81 |
| Weight (lb) | 179 |
Contact Us:
For inquiries, quotes, or to place an order, please contact us at:
Email: [email protected]
Contact Page: Contact Us
About Us:
FG Water Technologies, part of Wuxi Fenigal Science and Technology Co. Ltd., is a leading provider of advanced water treatment equipment and solutions. We specialize in the design, manufacturing, and global shipment of water purification systems and treatment technologies, including reverse osmosis (RO), ultrafiltration (UF), and electrodeionization (EDI) systems.
Our products serve industries such as food and beverage, pharmaceuticals, chemical processing, power generation, and municipal water treatment. With a focus on innovation, quality, and sustainability, we are committed to delivering high-performance solutions to meet the evolving needs of our clients.
For more details about our DuPont Ultrafiltration Membrane Modules, visit: DuPont Ultrafiltration Membrane Modules.
