DuPont IntegraTec SFP-2660/SFD-2660 PVDF Ultrafiltration Modules for Open Platform

Brand

DuPont™ IntegraTec™

Models

SFP-2660 / SFD-2660

Part No. / GMID

SFP-2660: 10380855 / SFD-2660: 10380857

Product type

Pressurized hollow fiber ultrafiltration membrane module

Platform

Open platform

Filtration mode

Out-In pressurized

Membrane type

Hollow fiber

Membrane material

PVDF (Polyvinylidene Fluoride)

Nominal pore size

0.03 μm

Module operating process

Dead-end

Other wetted module components

Polyurethane, uPVC, EPDM, and ABS

Active membrane area

33 m² / 355 ft²

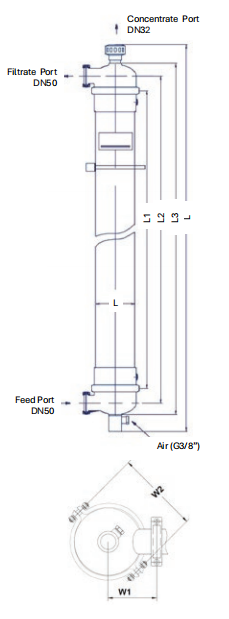

Overall module length (L)

1,838 ± 3.0 mm / 72.4 ± 0.1 in

Module length (L1)

1,500 ± 1.5 mm / 59.1 ± 0.1 in

Module length (L2)

1,613 ± 3.0 mm / 63.5 ± 0.1 in

Module length (L3)

1,713 ± 3.0 mm / 67.4 ± 0.1 in

Module diameter (D)

165 mm / 6.5 in

Module width (W1)

125 mm / 4.9 in

Module width (W2)

250 mm / 9.8 in

Shipping weight

30 kg / 66 lb

Weight, empty

25 kg / 55 lb

Weight, filled

41 kg / 90 lb

Hold-up volume, feed side (CIP)

14 L / 3.7 gal

Hold-up volume, membrane structure (CIP)

6 L / 1.6 gal

Hold-up volume, filtrate (CIP)

4 L / 1.0 gal

Operating temperature

1–40 °C / 34–104 °F

Operating pH

2–11

Cleaning pH

2–12

Typical filtration TMP

0.4–1.5 bar / 5.8–21.8 psi

Typical backwash TMP

0.6–2.0 bar / 8.7–29.0 psi

Backwash type

Air scour with liquid backwash

Backwash flux

40–100 L/(m²·h) / 23.5–58.8 gfd

Backwash flow

1.3–3.3 m³/h / 5.8–14.6 gpm

Maximum rate of pressure change

0.5 bar/s / 7.3 psi/s

Maximum inlet pressure

6.25 bar at 20 °C / 90.7 psi

Maximum filtration TMP

2.1 bar / 30.5 psi

Maximum backwash TMP

2.5 bar / 36 psi

Maximum filtration flux

110 L/(m²·h) / 64.5 gfd

Maximum filtration flow

3.6 m³/h / 16.0 gpm

Maximum backwash flux

120 L/(m²·h) / 70.6 gfd

Maximum particle size

300 μm

Sodium hypochlorite exposure limit

≤ 1,500,000 ppm × h

Recommended maximum instantaneous sodium hypochlorite exposure

2,000 ppm
