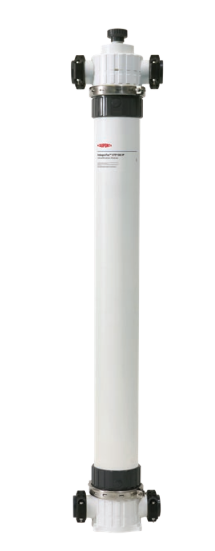

DuPont™ IntegraTec™ XTP 100 IP Ultrafiltration Module for Municipal Drinking Water and Bottled Water | High-Flux, Fouling-Resistant PVDF Membrane
Product DescriptionHigh-Performance Ultrafiltration for Reliable Drinking Water ProductionThe DuPont™ IntegraTec™ XTP 100 IP is a pressurized hollow-fiber ultrafiltration module designed for high-throughput municipal drinking water, bottled water, and similar water treatment applications. Featurin
Product Description
High-Performance Ultrafiltration for Reliable Drinking Water Production
The DuPont™ IntegraTec™ XTP 100 IP is a pressurized hollow-fiber ultrafiltration module designed for high-throughput municipal drinking water, bottled water, and similar water treatment applications. Featuring 100 m² (1,076 ft²) of active membrane area, the module delivers high productivity within a controlled system footprint, making it well suited for scalable rack-based installations.
At the heart of the XTP 100 IP is DuPont’s proven hydrophilic PVDF hollow-fiber membrane technology. With a nominal pore size of 0.03 μm, the membrane provides effective removal of colloidal particles, bacteria, and viruses while offering excellent permeability, chlorine resistance, and long-term durability.
Compared with conventional ultrafiltration modules, the XTP 100 IP supports a 20% higher design flux, helping water treatment facilities increase output without proportionally increasing system size. Its optimized module design also enables high operating recovery, efficient air scouring, and reduced chemical consumption during maintenance cleaning.
Engineered for Efficient, Scalable Operation
The innovative end-cap design allows direct module coupling in IntegraPac™ IP skids, simplifying installation and supporting straightforward system expansion. Robust wetted materials and strong tolerance to air scouring help provide reliable performance under demanding operating conditions.
With easy installation, low maintenance requirements, and flexible scalability, the IntegraTec™ XTP 100 IP offers a practical ultrafiltration solution for operators seeking consistent treated-water quality, higher productivity, and efficient lifecycle performance.
Key Product Advantages
High water throughput: Up to 20% higher design flux than conventional UF modules
Large filtration area: 100 m² of active membrane surface for increased productivity
Reliable contaminant removal: High log removal of colloidal particles, bacteria, and viruses
Advanced PVDF membrane: Hydrophilic hollow fibers provide excellent permeability and fouling control
Strong chemical resistance: Designed for chlorine exposure and effective maintenance cleaning
High operating recovery: Supports efficient backwashing and air-scour operation
Lower chemical consumption: Optimized maintenance-cleaning protocols help reduce chemical use
Scalable skid integration: Direct coupling with IntegraPac™ IP rack systems simplifies expansion
Long service life: Robust membrane fibers and module materials support long-term operation
Easy installation and maintenance: Engineered to reduce installation complexity and routine service demands
Typical Applications
Municipal drinking water treatment
Bottled water production
High-throughput potable water systems
Rack-mounted ultrafiltration plants
Water treatment applications requiring compact footprint and scalable capacity
Technical Highlights
| Specification | Value |
|---|---|
| Product model | DuPont™ IntegraTec™ XTP 100 IP |
| Part number / GMID | 42000360 |
| Filtration mode | Pressurized, outside-in |
| Membrane configuration | Hollow fiber |
| Membrane material | Hydrophilic PVDF |
| Nominal pore size | 0.03 μm |
| Operating process | Dead-end filtration |
| Active membrane area | 100 m² / 1,076 ft² |
| Typical filtration TMP | 0.4–1.5 bar / 5.8–21.8 psi |
| Maximum filtration flux | 110 L/(m²·h) / 64.5 gfd |
| Maximum filtration flow | 11.0 m³/h / 48.4 gpm |
| Operating temperature | 1–40°C / 34–104°F |
| Operating pH range | 2–11 |
| Cleaning pH range | 2–12 |
Short Product Summary
The DuPont™ IntegraTec™ XTP 100 IP ultrafiltration module combines a 100 m² hydrophilic PVDF membrane, 0.03 μm pore size, high design flux, and scalable rack integration. It is engineered for municipal drinking water and bottled water facilities that require reliable contaminant removal, high throughput, efficient cleaning, and a compact system footprint.
